UL-approved FR4 PCB Service Supplier

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal

Product Description

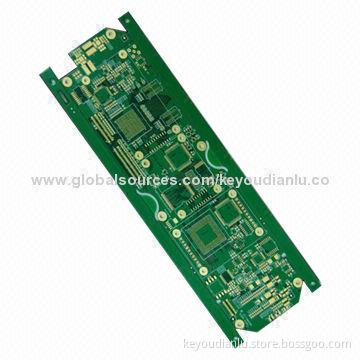

Layer counts: 4

Major material: FR4

Board thickness: 1.6mm

Surface finishing: immersion gold

Solder mask: green

Copper thickness: 1oz

Min hole size: 0.3mm

Min line width and spacing: 4mil

Image:

Solder mask:

Holes:

Plating:

Certificates: RoHS, ISO 9001:2008, SGS, UL

Minimum trace width: 0.075mm (3 mil)

Minimum space Width: 0.075mm (3 mil)

SMD pitch: 0.2 mm(8 mil)

BGA pitch: 0.2 mm (8 mil)

Minimum solder mask dam: 0.0635 mm (2.5mil)

Soldermask clearance: 0.075mm (3 mil)

Minimum SMT pad spacing: 0.075mm (3 mil)

Solder mask thickness: 0.0007" (0.018mm)

Min size (CNC): 0.2 mm (8 mil)

Min punch size: 0.9 mm (35 mil)

Size tol (+/-):

Position tol: ±0.075mm

PTH: ±0.075mm

NPTH: ±0.05mm

Lead free HASL: 2.5um

Immersion gold nickel: 3-7um Au 1-5u''

OSP: 0.2-0.5um
