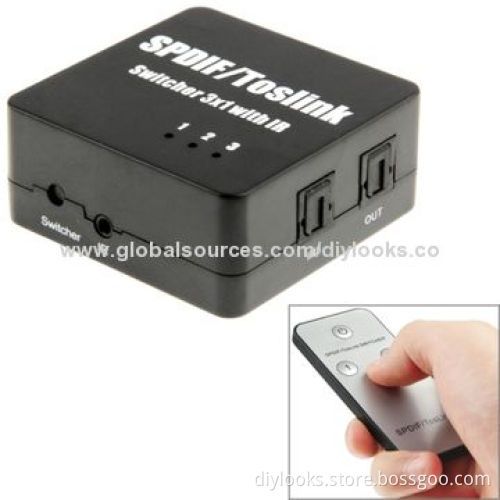

  • SPDIF/TOSLINK Power Adapter Digital Optical Audio Switcher3x1 with Remote IR Control
  • Introduction:
    1. One way optical fiber signal splits into three identical outputs at the same time
    2. Supports Dolby Digital and DTS 5.1
    3. Supports LPCM Stereo 32kHz, 44.1kHz, 48kHz and 96kHz
    4. Integrated circuit implementation delivers unsurpassed reliability and fidelity, virtually no loss of quality
    5. Use optical fiber cable loss less the 0.2Db/m, output distance can be up to 40m
    6. Over-voltage protection
    7. Plug-and-play, installs in minutes
    8. DC 5V/500mA power supply
  • Specifications:
    1. Audio format support: LPCM2.0/DTS/Dolby-AC3
    2. Peak wavelength: 650nm
    3. Max baud rate: 16Mbps
    4. Output cable distance: ≥40m (use the optical fiber cable loss less the 0.2Db/m)
    5. Max working current: 100mA
    6. Input: AC (50Hz, 60Hz) 100V-240V
    7. Output: DC 5V/500mA
    8. Operating temperature range: 0 to +40°C
    9. Operating humidity range: 5 to 90% RH (no condensation)
    10. Weight: 35g
    11. Dimensions: 54mm x 54mm x 23.5mm
  • OEM orders are welcome, we can print customer's artwork and logo
  • Type of packing: color box
