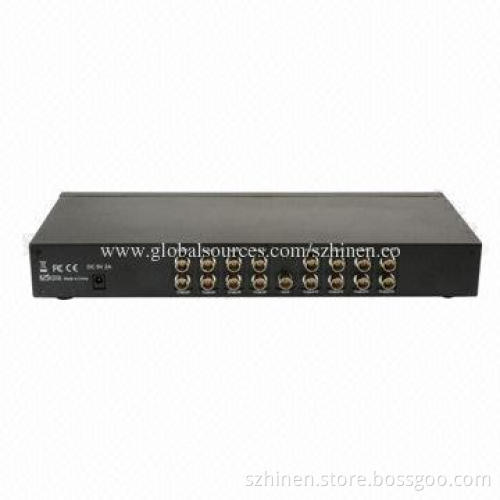

3G SDI 1 x 16 Splitter with ReClock, Compatible with HD CCTV 1.0, HD-SDI (ST 292)
  • 3G SDI 1 x 16 Splitter with ReClock, Compatible with HD CCTV 1.0, HD-SDI (ST 292)
3G SDI 1 x 16 Splitter with ReClock, Compatible with HD CCTV 1.0, HD-SDI (ST 292)

3G SDI 1 x 16 Splitter with ReClock, Compatible with HD CCTV 1.0, HD-SDI (ST 292)

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • This product is specially designed with equalizer IC in its input and drive IC in its output
  • All of the input and output support long coaxial cable
  • Supports multiple video resolution:
    • 3G 1,080P at 50/60fps
    • HD 1,080P at 24/25/30fps
    • HD 1,080i at 50/60fps
    • HD 720P at 24/25/30/50/60fps
    • SD 480i, 576i and 625i
  • Supports multiple colors space:
    • RGB or YCbCr 4:4:4 sampled
    • YCbCr 4:2:2 or 4:2:0 sampled
  • Supports wide range data rate: 270Mbps-2.97Gbps
  • Supports multiple deep color: 8, 10, 12-bit
  • Compatible with HD CCTV 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)
  • Electrical protections:
    • Power reverse polarity
    • Power over-voltage protection, but voltage must <28V
    • ESD protect, contact discharge 8kV, air discharge 15kV
  • 3G 1,080P at 50/60fps
  • HD 1,080P at 24/25/30fps
  • HD 1,080i at 50/60fps
  • HD 720P at 24/25/30/50/60fps
  • SD 480i, 576i and 625i
  • RGB or YCbCr 4:4:4 sampled
  • YCbCr 4:2:2 or 4:2:0 sampled
  • Power reverse polarity
  • Power over-voltage protection, but voltage must <28V
  • ESD protect, contact discharge 8kV, air discharge 15kV
