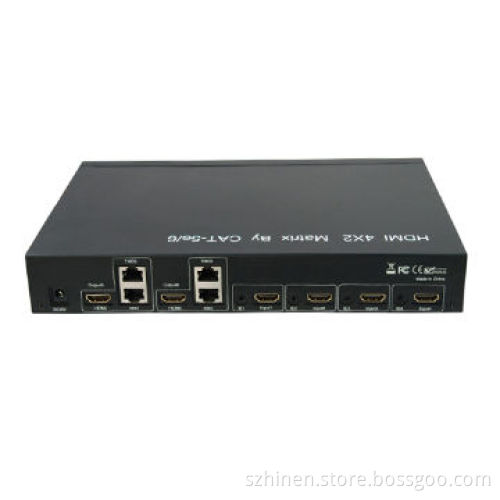

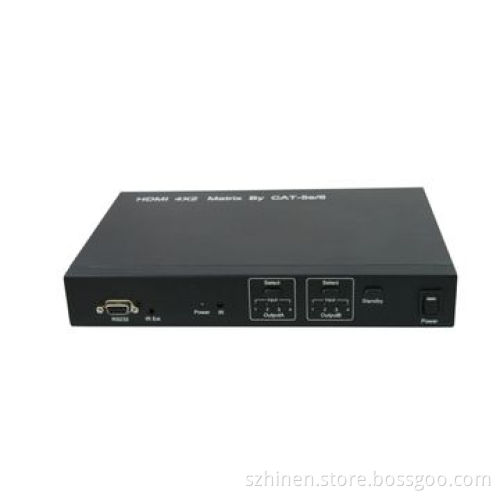

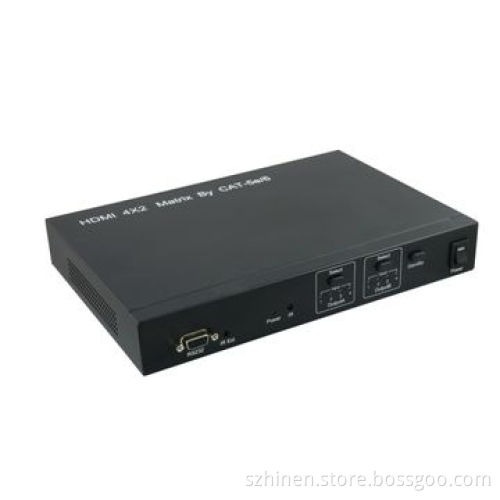

HDMI Switch-splitter, 4x2 (Matrix) by 2xCat-5e/6

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Allows any HDMI display to view any source at anytime

Allows any source to be displayed on multiple displays at the same time

HDMI or DVI to HDMI cables are used to connect the inputs and the matrix output

Each output includes one HDMI output and UTP output over Cat5e/6, but only one way is available at a time

Each UTP output is connected to a receiver

UTP output extends signal up to 40m for 1080p by UTP cable with cross stand inside

Each input includes an infrared emitter, which is used to control the long-distance source device by remote control

Each display's inputs can be switched with the IR remote control, front panel buttons or through RS232

Supports highest video resolution 1,080p

Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

Supports 12-bit per channel (36-bit all channel) deep color

Supports HDCP

Supports uncompressed audio such as LPCM

Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
