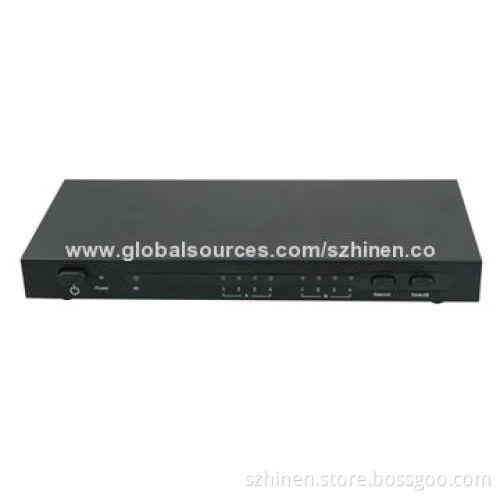

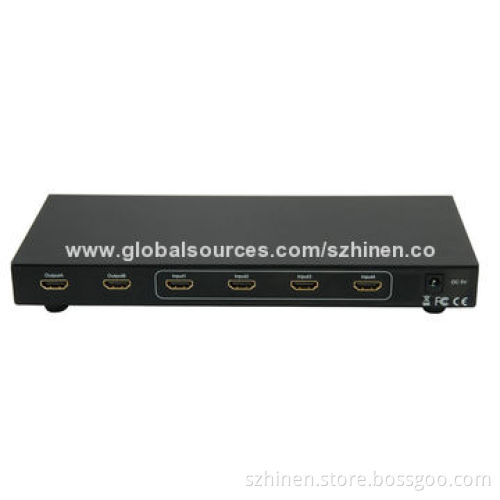

HDMI 4 x 2 Matrix with 1,080 Pixels Video Resolution

HDMI 4 x 2 Matrix with 1,080 Pixels Video Resolution

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Cat5e/6 offers unprecedented flexibility and convenience by routing high-definition audio/video from any of four HDMI video sources to any of 4 displays over HDMI cable or 4 remote displays over inexpensive standard Cat5e/6 cable

Allows any HDMI display to viewing any source at anytime

Allows any source to be displayed on multiple display at the same time

HDMI or DVI to HDMI cables are used to connect the inputs and the matrix output

Each output includes one HDMI output and UTP output over Cat5e/6, but only one way is available at a time

Each UTP output is connected to a receiver

UTP output extends signal up to 40m for 1,080P by Cat6 cable

Each input includes an infrared Emitter, which is used to control the long-distance source device by remote control

Each display's input can be switched with the IR remote control or through RS232

Supports HDMI1.3b

Supports highest video resolution 1,080P

Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

Supports 12-bit per channel (36-bit all channel) deep color

Supports HDCP

Supports uncompressed audio such as LPCM

Supports compressed audio such as DTS digital, Dolby digital (including DTS-HD and Dolby TrueHD)

Supports 3D all format, including 1,080P at 23.98/24Hz, 720P at 59.94/60/50Hz, bandwidth up to 225MHz
