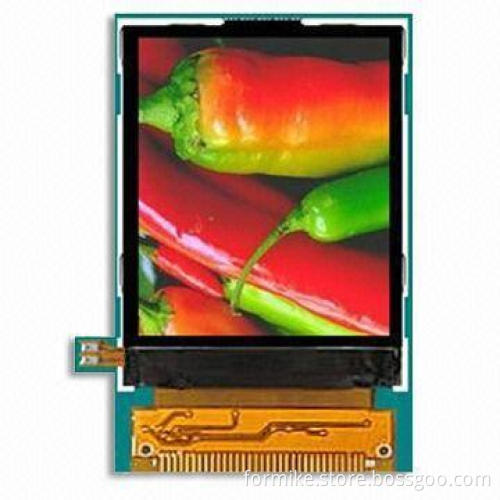

1.69-inch Color STN LCD Module with Drive IC UC1698V, Measuring 34 x 56.08 x 2.65mm
  • 1.69-inch Color STN LCD Module with Drive IC UC1698V, Measuring 34 x 56.08 x 2.65mm
1.69-inch Color STN LCD Module with Drive IC UC1698V, Measuring 34 x 56.08 x 2.65mm

1.69-inch Color STN LCD Module with Drive IC UC1698V, Measuring 34 x 56.08 x 2.65mm

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Display type: 128 x RGB x 160
  • LCD type CSTN negative transmissive
  • Drive method 1/160 duty TBD bias
  • Screen size: 1.69 (diagonal)
  • Viewing direction: 12 o'clock
  • Color configuration RGB vertical stripe
  • Backlight type white LED B/L
  • Interface 8-bit data bus
  • Drive IC UC1698U
  • Dimensional outline (W x H x T) 34.0 x 56.08 x 2.65mm
  • Number of dots: 128 x 3 x 160 dots
  • Viewing area (W x H): 30.2 x 36.2mm
  • Active area (W x H): 26.79 x 33.59mm
  • Pixel pitch (W x H): 0.0698 x 0.21mm
  • Dots size (W x H): 0.0598 x 0.20mm
