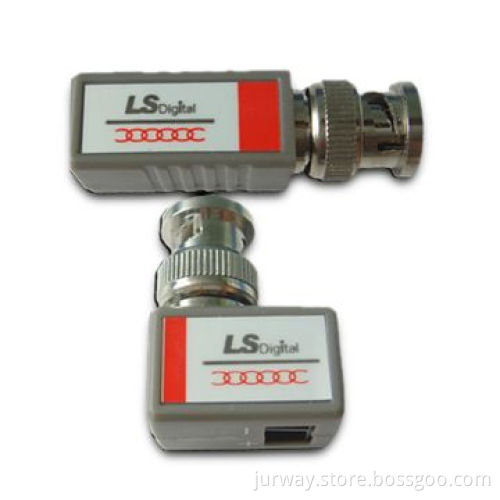

Passive Video Balun with BNC, 75Ω Impedance and 0 to 95% RH Humidity
  • Passive Video Balun with BNC, 75Ω Impedance and 0 to 95% RH Humidity
Passive Video Balun with BNC, 75Ω Impedance and 0 to 95% RH Humidity

Passive Video Balun with BNC, 75Ω Impedance and 0 to 95% RH Humidity

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Passive video balun without power
  • Specification: single-channel
  • Video frequency response: DC, 6MHz
  • Common/differential mode rejection: 15kHz to 6MHz, 60dBtype
  • Impedance: BNC 75Ω
  • UTP/connector: 100Ω or RJ45 100Ω
  • Environment:
    • Temperatures: 0 to 50°C
    • Humidity range: 0 to 95% RH
  • Wire type specification: 24AWG UTP CAT5
  • Impedance: 100Ω ± 20%
  • DC loop resistance: 18Ω/100M
  • Differential capacitance: 62pf/M (maximum)
  • Dimensions: 55 x 25 x 25mm
  • Weight: 50g
  • With full motion color CCTV video at distance up to 1,200ft (400m) when used with any passive transceiver
  • Full motion color CCTV video at distance up to 5,400ft (1,800m)when used with any active receiver
  • Temperatures: 0 to 50°C
  • Humidity range: 0 to 95% RH
