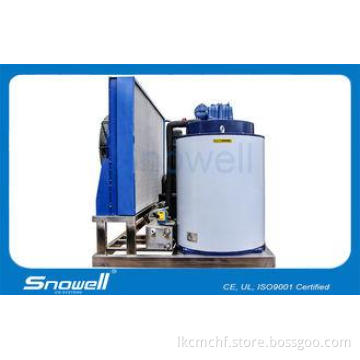

1.5 - 2.2mm Flake Ice Maker Machine For Concrete Cooling , R404A Refrigerant 5T/D

Quick Detail:

Capacity: 5000kg/24hrs

Refrigerant: R404A

Evaporator material: SUS304/Carbon steel

Compressor: Bitzer

Ice Thickness:1.5-2.2mm

Power supply: 3P/380V/50HZ

Excellent fast cooling

CE approved quality

Description:

SNOWELL flake ice machine has adopt the newest international ice machine making technology. We use and only use world famous components like Bitzer, Danfoss, and so on.

Compare to other supplier of ice flake machine in the industry, SNOWELL ICE SYSTEMS Ownsits unique technology and get much more better performance.

1. Superb Stability and reliability, long use life.

2. User-friendly design, intellectualized PLC touch-screen controller

* The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator.

* The intellectualized historical failure record

* Function and guidance of trouble shooting makes easier and simple operation and maintenance.

* Running time setting function convenienced operator,

* Saving energy and reduce cost.

3.Sub-cooled ice, excellent fast cooling

Super cold, dry, crisp,100% subcooled ice with greater surface area and exceptional cooling power.

4.Low maintenance and operation cost

Super performance offerstrouble-free operation, with much less maintenance probability than otherbrands of ice flakers.

5.Energy-efficient and cost saving

Applications:

Snowell commercial flake ice machine is widely used in supermarket preservation, seafood restaurant, food processing, fruit and vegetable preservation, makes the seafood, fresh meat and meat products more fresh.

Specifications:

NO.

Description

Specs.

1

Design capacity

5000kg/24h

2

Refrigeration capacity

30kw

3

Refrigerant

R404A

4

Total input

17.6kW

10

Power supply

380V/50Hz/3P or else

11

Nominal current

31A

12

Cooling mode

Water cooling

13

Evaporator structure

Spiral groove

14

Evaporating temp.

-22°C

15

Condensing temp.

40°C

16

Flake ice temp.

-5°C

17

Thickness of flake ice

1.5-2.2mm

18

Water feeding pressure

0.1Mpa-0.5Mpa

20

Design ambient temp.

25°C

21

Design water inlet temp.

18°C

23

Unit weight

980kg

24

Unit dimension (mm)

1800*1600*1450

Competitive Advantage:

Parts Name

Parts Photo

Parts Name

Parts Photo

D&F Gas seperator

Bitzer compressor

D&F Oil seperator

Danfoss expansive valve

D&F Receiver

Danfoss filter

Coil processing

JSCC water pump

Ice drum leak-point checking

Dosing pump

Pressure checking

SUS ice skate

Ice drum inner wall pait technology

Heat treatment equipment

Welding site

Machine testing
