Centrifugal Self-Priming Chemical Pump For Acid Fluid Pumpi

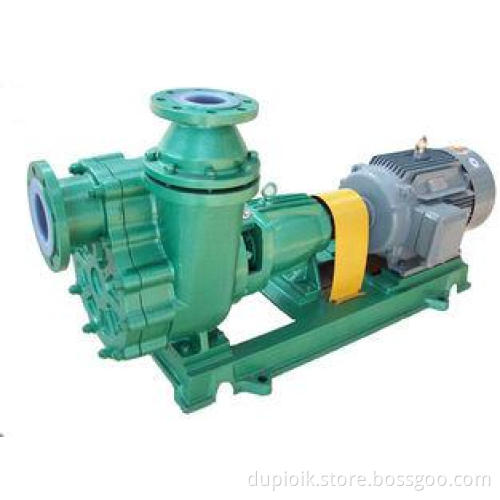

FZB Centrifugal Self-Priming Chemical Pump For Acid Fluid Pumping High Efficiency

FZB self-priming pump is with these features: The unitary system of impeller and axes, put an end to bond skid and medium inrush metal axes.The straight type has compacted structure, high efficiency.The linkage type adopts two segment types.The pump axes dismantle is easy FZB Fluoroplastics series self-priming pump are combined in accordance with international standards and non-metallic pump design and manufacturing process. Pump body with the use of metal plastic, use of over-current components fluoroplastics alloy manufacturing, pump cover, impeller with metal insert, etc. fluoroplastics outsourcing from the overall suppression of sintering, the use of outer seal mounted bellows advanced mechanical seals, static selection of 99.9%, Central, alumina ceramic (or silicon nitride), Dynamic Materials, Central, the use of PTFE-filled, and its decay excellent wear-resistant sealing performance. FZB the most prominent feature of self-priming pump is self-absorption capacity, simply pump before first use of irrigation fluid, the second time and beyond are not required to use irrigation fluid directly to the boot, under a high degree of self-absorption at medium density Zhu 1-3 identified, are to replace bulky body submerged pump the best choice.

Self-priming pump FZB all parts of the over-current use of fluorine plastic manufacturing,with self-priming function, FZB the use of human self-priming pump design, outstanding job performance, many have become more and more essential to the use of units of the pump equipment one. Transmission medium temperature of -20 c�~ 120 c�, flow :8-50m3 / h head :15-45m speed 2900r/min .FZB use a wide range of self-priming pump, the tank will be underground pumping corrosive fluid to the target location, no exports to the bottom of the acid-base acid-base tank pumping to the target location, or for a number of acid cycle between the trough , or for dumping acid, widely used in chemical, pesticides, acid soda, paper, pickling technology, electronics industries

Specifications:

Caliber: 25-100mm

Flow: 1.5-100m3/h

Head: 15-60m

Power: 1.5-15kw

Speed: 2950rpm

Medium temperature: -20C~120C

Model meaning:

65FZB-25L

65 The pump’s inlet diameter is 65mm

F It is made of fluoroplastics

Z It has the self-priming function

B Single-stage single-suction centrifugal pump

25 The pump lift is 25mm

L Long bracket
