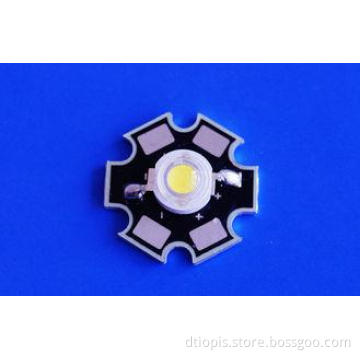

White 1W High Power Led Bridgelux Chips 150lm LM-80

White 1W High Power Led Bridgelux Chips 150lm LM-80

Quick Detail:

1.Model:SP1WNW150

2.Size: 14.8*7.9mm

2.Viewing angle: 120degree

3.Voltage:3.0-3.6v for 1w

4.Current:350ma for 1w

5.Color temperature: 4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k

6.Chips: Bridgelux chip

7.Luminous Flux:140-150lm for 1w

Usage: LED lighting , street light , flashlight , LED bulb, Halogen lamp,Table light ,Light strips etc.

Certificate: SGS, LM-80,ROHS

Description:

1. Best raw materials used in our LED production :
   1)Chip: Taiwan 45MIL chip;
   2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
   3) Powder: USA Intermatix (good powder has better performance in lumens);
   4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
   5) Led base:red/ black cooper base .
   Super high Flux output and high Luminance ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
   We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
   6)Free samples and 2 years warranty .

Specifications:

Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight

High power LED production line :
