Unmanaged Gigabit Ethernet Switch IEEE 802.3x 32Gbps
Description:

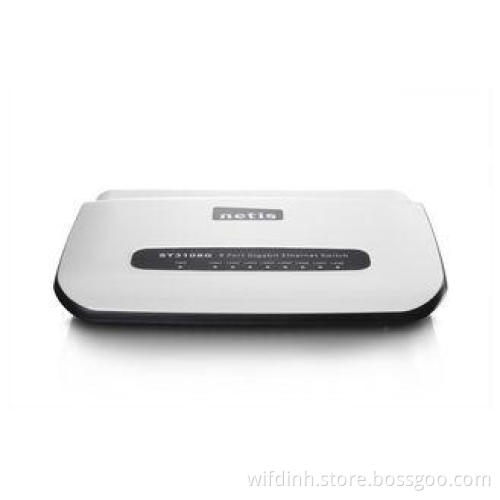

The netis ST3108G Gigabit Ethernet Switch provides 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. It provides high performance with minimum power consumption. It will cut power consumption when cable disconnected, then it wakes up and operates in normal mode when incoming signal detected, in which way that greatly reduces the power consumption.
Competitive Advantage:
Plug and play, no configuration required
Green Ethernet technology link down power saving and link on various cable length power saving
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design better for home and office use
8 10/100/1000Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
Specifications:
|
Hardware |
|
|
Interface |
8 * 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1-8 Link/Activity |
|
Power Supply |
DC 5V/2A(Output) |
|
Dimensions (L x W x H ) |
183 x 125 x 31 mm |
|
Switching Features |
|
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Switch Architecture |
Non-blocking |
|
Data Transmission Rate |
10/100/1000Mbps(Half-duplex) |
|
Switching Fabric Capacity |
32Gbps |
|
Built-in Buffer |
2M bits |
|
Jumbo Frame |
9KB |
|
MAC Address Table |
8K |
|
Others |
|
|
Certification |
FCC, CE, BSMI |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1 * ST3108G |
