15 Inch 1024x768 Pixels 262K Colors VGA / DVI 24V 12V Multi
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

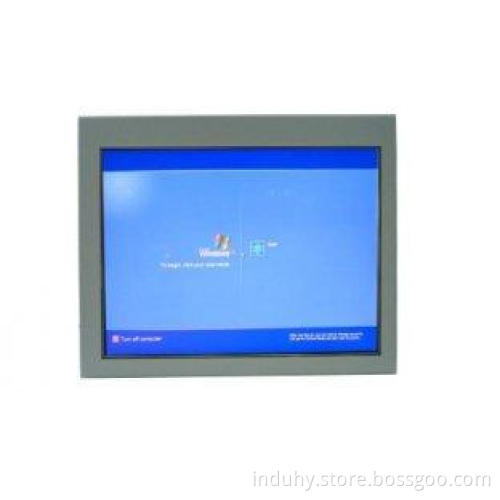

15 Inch 1024x768 Pixels 262K Colors VGA / DVI 24V 12V Multi Touch Screen Mointors
|
Model Name |
AMG-15OPBK01T3-V2 |
|
Viewable Size Image |
15" |
|
Active Display Area (mm) |
304.12(H)x228.09(V) |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Display Mode |
Normally white |
|
Number of Pixels |
1024x768 |
|
Contrast Ratio |
700:1(typ) |
|
Display Color |
262K colors |
|
Brightness (CD/m^2) |
350(typ.) ICFL=4.5 |
|
Backlight |
LED |
|
Viewing Angle (CR >=10) |
160(H);140(V) |
|
TOUCH SCREEN |
PCT TOUCH |
|
Synchronization Range |
31.5~37.5KHz/60~75Hz |
|
Recommended Resolution |
1024x768 60Hz/80Hz |
|
Signal Connector |
15 pin D-sub(VGA)/DVI-D |
|
Power Consumption |
DC 24V-12A / DC 12V-5A |
|
Dimension(V*H*T) |
348.5*286*56.6 |
Order Information
|
AMG-15OPBK01T3-V2 |
0P with 15” LCD, 350cd/m² 1024*768 Pixels LCD Monitor, PCT Touchscreen, VGA, DVI |
