Up828 Ultra Super Fast Universal Programmer up-828 Series Programmer

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong(Mainland China)
Payment Type:	T/T, Paypal, Western Union

Product Description

Description:

UP828 Ultra fast Universal Programmer is High speed universal programmer. UP-828 Series Programmer supports the newest types of FLASH. UP828 Universal Programmer For Flash Support 48MHz read and write pulse.

Pictures:

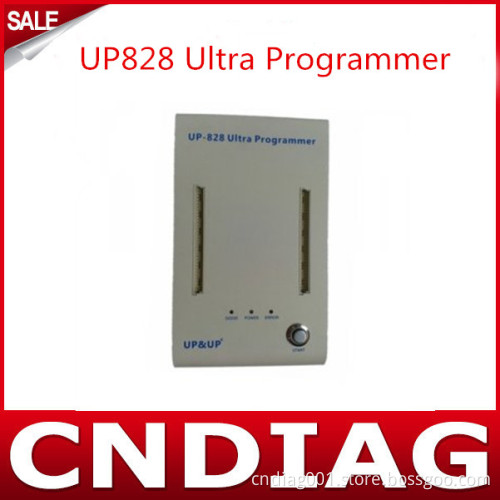

UP828 Ultra fast Universal Programmer UP-828 Series Programmer

Details:

UP-828 Ultra-fast Universal Programmer

This item without any Eprom Adapter, just main unit!

Features:

1. UP828 Universal Programmer supports the newest types of FLASH, NAND FLASH, SERIAL FLASH, MoviNAND, iNAND , eMMC etc, in addition the BOOT area of iNAND, eMMC and MoviNAND can be read and written

2. The EMMC 's read/write speeds can reach to 20MByte/se

3.UP828 Universal Programmer Support 48MHz read and write pulse, the highest support speed of read and write close to the limits of devices. Program + Verify one 1Gb NAND FLASH only in 34 seconds, program + Verify one 8Mb FLASH only in 4 seconds

4. 110 pins universal driving, Support VCC of devices from 1.2V to 5V

5. Auto-test short circuit or bad contact of devices, with intuitionist graphics Real-time detection ofshort circuit or bad contacting of devices, Guarantee the safety and quality of programming device

6. Program interface is simple, the device operation unified, different devices configuration and set option use uniform window entrance; especially designed for mass production compact interface, even front-line workers can easily using it freely

7. Simple operation, accessible, general deviceprogramed only need to set program options and device configuration, operation can be carried out simply, and flow is clear, don't need a lot of training can be easy to get started

8. Adopt reliable engineering encryption technology and innovatively using disposable engineering password mechanism to ensure the project files in transmission and in the process of using security, and control production, powerful safeguard engineering data security

9. High effective batch production mode: with one computer, you can run at most 8 UP828 programmer, occupy less resource; And SERIAL FLASH support the four modules, that is one host write four devices at the same time

10. Cluster quantity production support each host asynchronous, speaking, reading and writing, need not synchronous wait: Putting IC into each host programmer can be burned, or other operation without waiting , save the waiting time; Using one interface, but clearly operat each host, without switching back and forth, to further improve the overall efficiency of the mass production

11. Have the standard programming interface, devices can be customized for a variety of special programming algorithms, such as a variety of NAND bad block processing algorithms,Special serial number generated algorithm, devices under different conditions, programming, testing algorithms, etc., to meet a variety of special needs
12. High compatibility, durable BGA adapter, supporting the patented product BGA adapter average life-span more than 20 thousand times, usability and lifetime far beyond the import adapter

13. Perfect detailed log files and production programming statistical report, convenient programming quality tracking

14. Supports WINDOWS XP/VISTA/WIN7 operating system

Hardware specifications:

1. communication interface: USB2.0 (compat USB1.0/1.1)

2. System requirements: WINDOWS XP / 2003 / NT/WIN7 operating systems, 256MB or above RAM , 1GB or above hard disk space

3. Power Specifications: Input AC 100-240V, 50/60HZ; output DC 5V/1A

4. Host size: 208*128*45mm 0.8kg

Standard configuration:

1. A host, an external power, one USB2.0 cable, user manual, installation software CD, and a warranty card

2. Optional:adapter(suit for pin pitch 0.65mm,0.75mm,0.8mm, 1.0mm,0.5mm etc devices;Support Package: BGA, EBGA, SOP, TSOP, PSOP, TSSOP, SDIP etc..)
