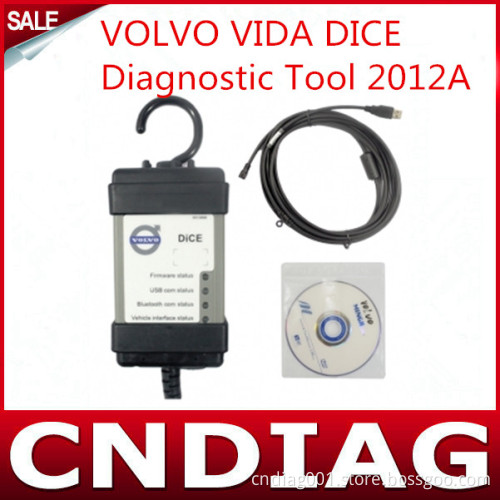

VOLVO VIDA DICE Diagnostic Tool 2012A

Volvo vida supplier, Volvo vida dice diagnostic tool 2011 Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle. Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.

New Arrival: Version now is 2012A

OBD2 Volvo VIDA DICE

Volvo VIDA DICE Description:

1. DICE - Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle. Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.
2. DICE has an integrated CARB cable, which is connected to the vehicle's diagnostic socket. When connecting to the vehicle, DiCE is powered as long as the battery is charged.
3. DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.
4. DICE is equipped with four status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.
5. At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.
6. In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.

Volvo VIDA DICE Function:

1. Administration - General information, design and function
2. Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety) as well as 3. Service and maintenance
4. Engine with mounting and equipment
5. Electrical system
6. Power transmission
7. Brakes
8. Suspension and steering
9. Springs, shock absorbers and wheels
10. Body and interior - among other things, diagnostics, design and function, repair and spare part information
11. Other - special vehicles, e. G., ambulances, police cars. Components that deviate from standard.

Volvo VIDA DICE Package list:

1. DICE device with OBDII cable
2. USB A to MINI USB angled cable
3. DVD with VIDA 2011 English (activated)
4. Version we offer now: VIDA 2011 English (locally activated, no online services; Login as "Info-PC")

Requirement on computer:
1. It must be windows XP SP3
2. It need to be InternetExplorer 8
3. Computer memory need over 2GRAM
4. C: // must have 16GB space
5. Software must install on C: //
6. It must be NTFS format

Related Products:
Volvo Serial Diagnostic Cable
MVCI Toyota TIS+Honda HDS+Volvo DICE
Volvo Truck Diagnostic Tool Volvo VCADS PRO
