2014 New Released Da-Vina 2534 SAE J2534 Pass-Thru Interface

The DA-VINA 2534 is a high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; It then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, ISO and SCP (J1850) protocols.
DA-VINA 2534 Jaguar LandRover Approved SAE J2534 Pass-Thru Interface

Language: Support German, Russian, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese, you can choose when installation
This DA-VINA 2534 can support car year before 2005

Note:

We don't offer software or Only cracked version of 137.02 version software. You can go to the official website: http://www.diagnostic-associates.com to update this tool.
Computer requirement: 4 nuclear WIN7 or XP 32-bit systems, More than 20GB of Hard Disk partition C.

DA-VINA 2534 Feature:

1. JLR Approved device
2. Replacement for JLR SDD VCM
3. Most cost effective Jaguar pass-thru VCI device
4. Covers CAN, ISO9141, SCP Vehicle Networks
5.12ft USB Cable as standard included
6. Best Suited for Legacy, Current and Future Vehicles
7. Easy to update for J2534 new functionality updates

DA-VINA 2534 Vehicle Coverage:



What does the DA-VINA 2534 do?

The DA-VINA 2534 connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

How does the DA-VINA operate in J2534 Mode?

The DA-VINA is simple and easy to use.
1. Download the latest J2534 DLL software files from the Diagnostic Associates web site http://www.diagnostic-associates.com/download. Htm and install these on the SDD Laptop.
2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).
3. Connect the 12ft USB cable to the DA-VINA and the other end to the SDD Laptop.
4. The (PWR) LED will turn solid red to show the DA-Dongle is powered.
5. During communication with the vehicle the Status (STS) LED will flash green.

How does the DA-VINA get updated for future Software Updates?

The DA-DAVINA can be updated simply and easily by connecting the DA-DAVINA to a laptop/PC via the USB cable that is provided with each DA-DAVINA.
A PC software update application (DA APP Hub) is available to download from the Diagnostic Associates website http://www.diagnostic-associates.com/download. Htm. This application once downloaded and launched will be responsible for identifying what version of software is on the device, and whether a new version is available for update.
By connecting the device to the PC when the DA APP Hub application is running, the application will read the device and connect over the internet to determine if an updated software is available and download this to the device if a newer version exists. This process takes approximately 3 minutes to complete. The device will then be updated and ready to be used on the vehicle.

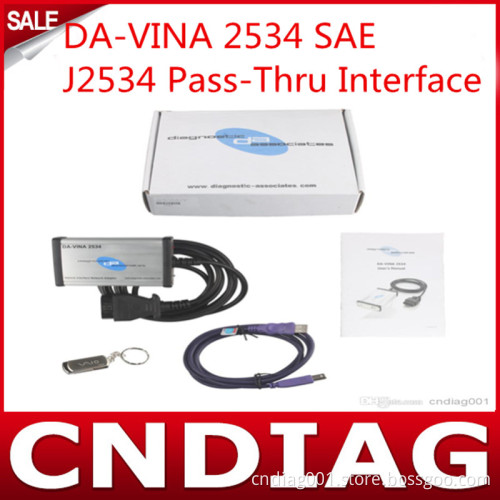

Package including:

1PC X DA-VINA 2534
