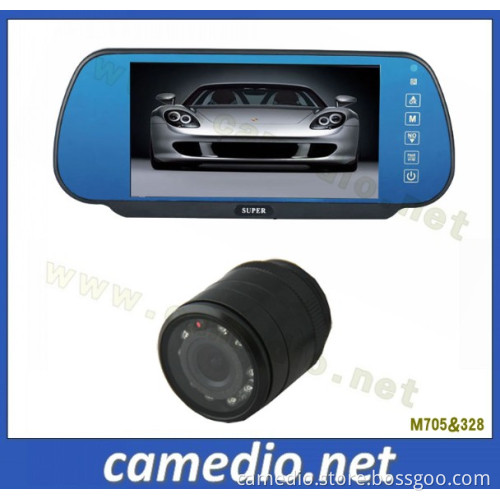

Car Reversing Camera Mirror Systems with 7 Inch Mirror Monitor

7inch rear view camera system, 7inch car reversing camera kit

7inch rear view mirror+night vision car camera

Car reverse camera mirror system

2 video input

9IR night vision camera

120 degree angle



Monitor Specification:
1)Screen Size: 7 Inch TFT-LCD(16: 9/4: 3)

2)System: PAL/NTSC

3)Power supply: DC 12V

4)Resolution: 480(W)xRGBx234(H) (Digital panel screen is available)

5)Max Power Consumption: 6W

6)Viewing angle: Horizontal 120° , Vertical 100°

7)OSD menu languages: Simplified Chinese, traditional Chinese, Japanese, English, German, Russian, French, Italian, Spanish, Portuguese

8)2 video input

9)Touch key and full function OSD remote control

10)Auto rearview function

11)Blue color background automatically appears when video signal disappears

12)Colour: Black, beige

13)Machine Size: 25*10.8*4.2 cm



Camera Specification:
120 degree Angle waterproof car rear view camera with IR

Image feature: OV7949/OV7950/OV7930 (can choose)

TV system: PAL/NTSC(can choose)

Image area: 5.961mm× 4.276mm

Effective pixels: P: 628(H)*586(V) N: 656(H)*462(V)

Horizontal Resolution(TV lines): 420 TV lines

Lens angle: 2.8mm 120°

Water-proof rating: IP67-IP68

Minimum Illumination: 0 Lux with IR

IR LED: 9 PCS

Electronic Shutter Time: 1/50(1/60)-1/100, 000sec.

Scanning System: 2: 1 Interlace

Sync System: Internal

S/N ratio: >48dB

Video Output: 1.0Vp-p, 75ohm

Power Source: DC12V± 10%

BLC: Automatism

AGC: Automatism

White Balance: Automatism
