Dash Quad Display 7" Split LCD Monitor Support Single, Dual, Triple, Qua...

1. Eliminate all blind spots at the rear of the vehicle.

2. Get the clear and accurate view of everything behind yout vehicle.

3. Make reversing safe,stress-free,easy driving.

4. Make your life just a little bit easier.

5. Reduce traffic accidents

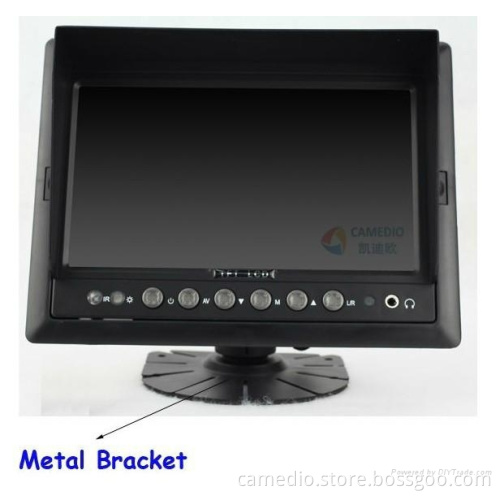

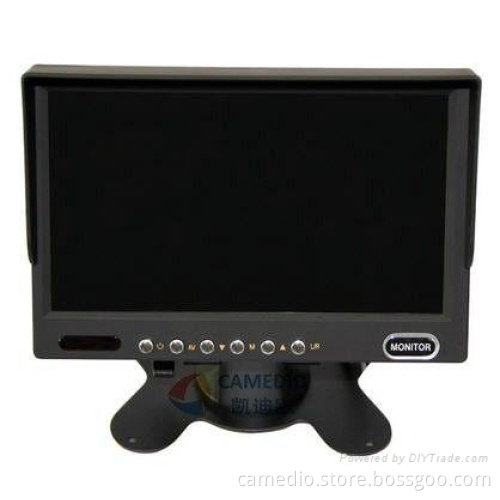

7 Inch TFT LCD monitor with built in Single, Dual,Quad image
Screen size: 7 inch(16:9)

Resolution: 480(W)xRGBx234(H)

System: PAL/NTSC

Contrast: 450:1

View Angle: L/R/U/D 60º/60º/40º/60°

Brightness: 450cd/m²

Visible Area: 154x86mm

Power Supply: DC12V~DC36V

Power: About 5W

Opeartion Temperature: -20~70°C

Storage Temperature: -20~80°C

Color Option: Black

Apprearance Dimension: (L)172X(W)125X(H)54mm

OSD Menu Funtion: 1) Reversiong image delay time 0~10s

                                      2)Separately adjust camera Mirror/Normal image

                                      3)Multi-language

Video: 1)Four way video input, audio optional

             2)AV2/AV3/AV4 with trigger

             3)blue screen when no signal

Operation Mode: Remote control+Keystroke

                          Remote control and keystroke can switch pictures at four directions
                          Switchable: 11 images optional

Features:

1)With reverse polarity protection

 2) Sunshade,

3)With light sensor,

4)Supply DC12V power to four cameras,

 5)AV2/AV3/AV4 with trigger wires

 6) Single/dual/triple/quad image

Optional function:

           1) Digital screen optional

            2) S jack, aviation connector optional

             3) Audio optional


The products are mainly fit for the field of reversing & security and widely used in Car,Bus,Truck,Fire engine,Mail car,Police car,Camper,Garbage truck,Agricultural vehicles etc.
