CCD 24V Bus Centre Dome Surveillance Camera

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China, Shenzhen
Payment Type:	T/T, Paypal, Money Gram, Western Union, Paypal

Product Description

FEATURES:

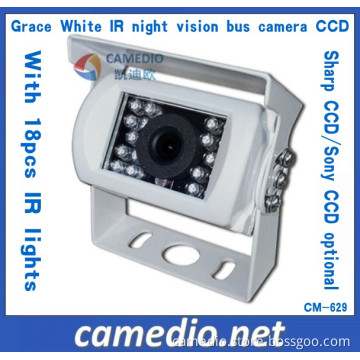

* Bus centre surveillance camera

* Exquisite Metal housing design

* Black/white color optional

* 120 degree view angle

* 12V Sharp CCD /Sony CCD optional

* With 18pcs IR for good night vision

Bus centre camera helps in preventing accidents while driving or reversing to avoid accident with children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space.

SPECIFICATIONS:

Image feature:1/3" CCD COLOR(SHARP/SONY)

TV System:NTSC/PAL

Image area:4.9mm×3.7mm

Effective pixels:N:512X492/P:638X582

Horizontal Resolution(TV lines):480 TV lines

View angel:2.8mm 120°

water-proof rating:IP66

minimum Illumination:0Lux,12 pcs IR LED

Electronic Shutter Time:1/50(1/60)-1/100,000sec.

Scanning System:2:1 Interlace

Sync System:Internal

S/N ratio:>48dB

Video Output:1.0Vp-p,75ohm

Power Source:DC12V±10%

BLC:automatism

AGC:automatism

White Balance:automatism

Operation Temperature:-20ºC~+75ºC(RH95%Max.)

Storage Temperature:-40ºC~+85ºC(RH95%Max.)

Dimension: 82*55mm

Basic feature:

1. This tilt body style camera compatible with most rear view systems or car LCD screens that support camera or video RCA/4-pin aviation connector input.

2. The camera made out of high quality components, 120 degrees wide angle lens and very sharp color CCD chip.

3. The body of the camera features weather proof, shock proof constriction with night vision infrared LEDs and light detection sensor.

Advantage:

1.Front casing----Material of PC/ABS could resistant high temperature(stock in 85°C for 4hours) as well as flame retardant.

2.Lens----We are questing for perfect definition, lens are made of 5G Full-glass.

3.Image Sensor----HD CCD

4.Rear casing----design of plug in / punch.

5.PCB board----Self-developed circuit board with PCB environmentally friendly materials, no pollution, more durable. With overload protection function, and prevent short circuit. Even if wrong interface connection for wiring, it won't bring damage to the product.
