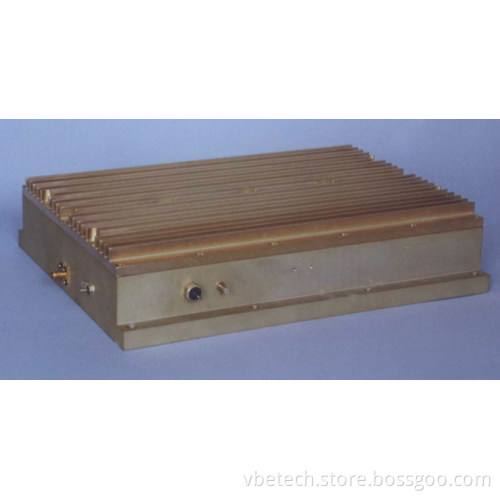

C-Band RF Power Amplifier (PA)

Product Features
Wide Frequency band;
High RF Output Power, High Linearity;
High efficiency, high reliability;
Modular design, easy for installation and maintenance;
Wide operating temperature range;
Custom made available

Technical Specifications

NO.	Item	Description	Min Typical Max	Unit
1	Frequency Band		14.0 14.5	GHz
2	RF Output Power(1dB Compression Point )	VBPAC59-64M10 VBPAC37-42M20 VBPAC37-42M40 VBPAC59-64M100 VBPAC59-64M200	39 40 42 43 45 46 49 50 52 53	dBm
3	IIP3	VBPAC59-64M10 VBPAC37-42M20 VBPAC37-42M40 VBPAC59-64M100 VBPAC59-64M200	49 50 51 53 54 56 58 60 61 63	dBc
4	Gain	VBPAC59-64M10 VBPAC37-42M20 VBPAC37-42M40 VBPAC59-64M100 VBPAC59-64M200	51 54 51 54 57 60 58 62 62 65	dB
5	Gain Stability	24 Hours	+/-1	dB
6	Gain Flatness	Full Band Per 40MHz	+/-1.0 +/-0.3	dB
7	AM / PM conversion	P1dB-2dB	2.0	°/dB
8	Group delay(Per 40MHz bandwidth)	Linear Parabola Fluctuation	0.03 0.003 1.0	nS/MHz nS/MHz² nSp-p
9	VSWR	Input Output	1.35 1.50 1.25 1.35
10	Connector	Input Output DC	N or SMA FDM70 or FDP70 Feedthrough capacitor
11	Working Voltage	DC	+15	V
12	Working Current	VBPAC59-64M10 VBPAC37-42M20 VBPAC37-42M40 VBPAC59-64M100 VBPAC59-64M200	7.0 9.0 20.0 50.0 100	A
13	Working Temperature		-40~+55	°C
