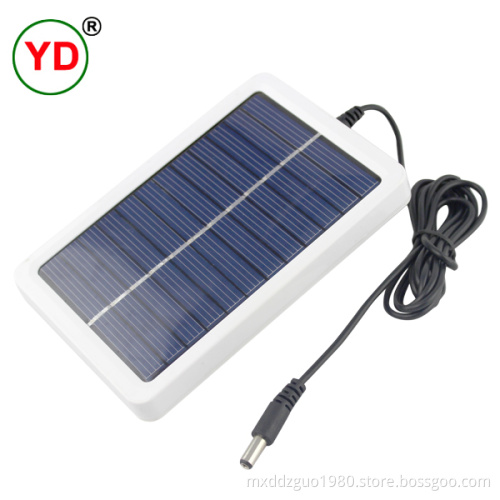

1.5W 6V Solar Panel

OEM 1.5w solar panel
Features
High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load, and extreme temperature variations
Attractive appearance
Unique frame design, high mechanical strength, and easy Installation

Efficiency
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability
Electrical Characteristics
ModelSGP-120w
Cells size (mm): 156*133.7
Cells per module: 36pcs
Module size (mm): 670*1270*35cm
Power tolerance: +/-3%
Nominal peak power(WP): 120w
Nominal voltage(V): 17.5
Nominal current (A): 6.85
NOCT: 45+/-2degree
Voltage temperature coefficient: -0.33%/degree
Current temperature coefficient: +0.05%/degree
Power temperature coefficient: -0.23%/degree
Open circuit voltage (Voc): 21.6
Short cirsuit current(Isc): 7.41
Conversion efficiency: 15.94%
Operating temperature: -40 to+85degree
Max system voltage: 1000V DC
Surface Maximum Load Capacity60m/s(200kg/sq. M)
Cell power3.88w
Materials
Glass
1. High light transmission no less than 91.6%
2. Excellent mechanical loading performance (5400 PA)
EVA
1. High light transmission
2. High GEL and peeling strength guarantying strong encapsulation
3. Good ultraviolet aging resistance
4. Excellent oxidation resistance
5. TUV certified
Cell
1. Excellent efficiency and long term reliability
2. Good performance under high temperature and low irradiance conditions
3.100% In-line Electroluminescence (EL) tested
4. Positive tolerance for each panel
5. Cell efficiency filling by 0.2 percentage
6. TUV certified
Back sheet
1. TPT based encapsulation and protection
2. Good aging resistance
3. Excellent adhesion and ultraviolet stability
4. TUV certified
Frame
1. Anodized/ Electrophoretic aluminium means durable protection from environment
2. Unique design profile ensuring strong mechanical loading performance
3. Silver/ Black color available
Junction box
1. Climate membrance: Excellent heat dissipation, prevent steam coming from outside and corrosion of diode by inside steam on the condition of big difference in temperature
2. IP65 protection
3. TUV certified
Connector
1. MC4 compatible/ IP65 or MC4 original/ IP67
