RFID Metal Vandal-Proof and Keypad with Back Light Access Control System

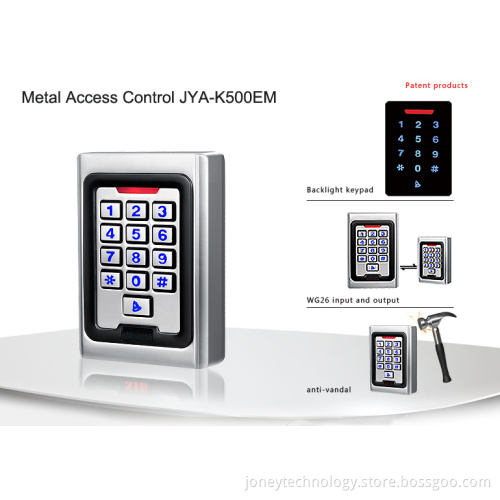

JYA-K500 Introduction:
JYA-K500 is a reliable one door access control for most home usage. With the IP68 waterproof design, it can adapt to most of weather and area and it is convenient even in the bad weather. It can allow 2, 000 users use the machine. With backlight, it can use in the dark night. The unit is a single door multifunction standalone access controller, which is an ideal choice for door access for shops, households, commercial and industrial applications, such as, factories, warehouse, laboratories, banks and prisons.


Product features
Working Voltage: DC12V± 10%
Environment Temperature: -45~60 degree
Environment Humidity: 10%~90%
Electric lock output: Less than 3A
Alarm output: Less than 20A
Output short-circuit protection time: ≤ 100μ S
Open-door time: 0~99 seconds (adjustable)
Size: 120× 80× 25mm
With Anti-theft alarm output for external alarm device
With bult-in-anti-theft equipments
Support enrolling cards continuously
Perfect design, with backlight and fashion silver finish
Strong standalone function device, can be used as WG26reader alone
Capacity: 2000 user's cards, 2000 codes
Access ways: Cards, code, card + code
Lower power: Static current less than 25mA
Support only keypad
Users can reset private passwords
Wiegand output W26 for card and W34 for codes
Use keypad to delete lost cards for safety
Short-circuit protect: When relay or alarm output short circuit, it will shut up in 100μ S
The unit is a single door multifunction standalone access controller, which is an ideal

Type: Card Frequency Reading-Card distance
JYA-K500EM 125KHz 5-6CM
JYA-K500Mifare 13.56MHz 3-5CM
