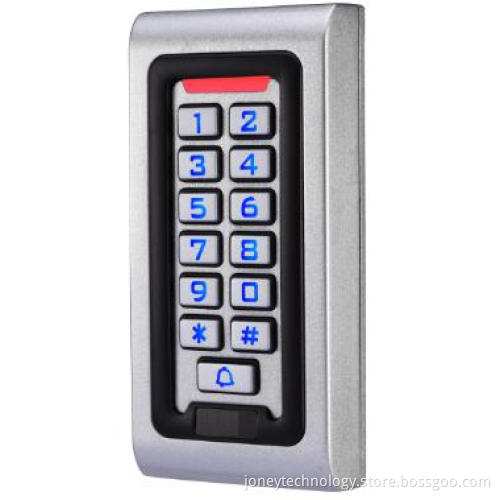

Metal Vandal-Proof Access Control

Product Profile
The product is Contact-less inductive card Metal Password Access Controller, According to the model, respectively support EM, HID, MIFAREthree cards, It is one of the most advanced stand alone access controller. It uses unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and reliability is extremely high, can provide a powerful security for 2, 000 users. It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. Widely used in home, office, residential area and other public places.



Features
Low power consumption: Less than 30mA standby current

Luminous keyboard: The night can also operate keyboard

User capacity: Support 2, 000 users

Independent password: Can use password which irrelevant with the card to open the door

User modification password: Users can revise the door password

Search speed: Charge to open the door time less than 0.1 S.

Output short circuit protection: Electric lock or alarm output circuit within 100 μ S when shut down automatically output

Wiegand output: With Wiegand output interface, Wg26 card number or Wg4 buttons output

Usable keyboard delete card number: After card is lost, usable keyboard delete card, Thoroughly eliminate safety lapses

The demolition alarm: Illegal dismantling machine, built-in alarm sound buzzer

The bell button and interface: Key and circuit segregation, external any the doorbell.



Technical parameters
Work Voltage: DC9-28V

Static Current: ≤ 30mA

Reading Range: 3~15cm

Capacity: 2000 users

Ambient Temperature: -25° C~60° C

Ambient Humidity: 10%~90%

Electricity lock output: ≤ 3A

Alarm output: ≤ 20A

Output short circuit protection time: ≤ 100μ S

Open time: 0 ~ 99 seconds (adjustable)

Size: 120 *58*20mm
