Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Application125°C Temperature

Conductor MaterialNickle-plate, silver-plated,Tin Copper Alloy, Silver Copper Alloy

Conductor Type36AWG to 8AWG

Insulation MaterialEPDM

Jacket EPDM

Special Features

Our range of 125 Temperature EPDM Electrical Installation Wire is available with following features:- Insulating layer have very good adhesion with epoxy resin adn polyester resin,

Most air conditioning electromagnetic valve coil manufacturers have been using this product, And get very high praise.

Long-term work allowed at temperature 125,

Short circuit at temperature 250,

This wire can still maintain normal insulation performance

After several times impact test from 40 to -180, this wire also can maintain the insulating properties like normal temperature

Specifications:* Rated temperature: 125
* Rated voltage: 600V
* Referencestandard: UL758, UL1581, CSA C22.2
* Passes UL VW-1 and CSA FT2 flame test
* Uniform insulation thickness to ensure easy stripping and cutting
* For Air conditioning electromagnetic valve coil, motor leads internal wiring of appliance

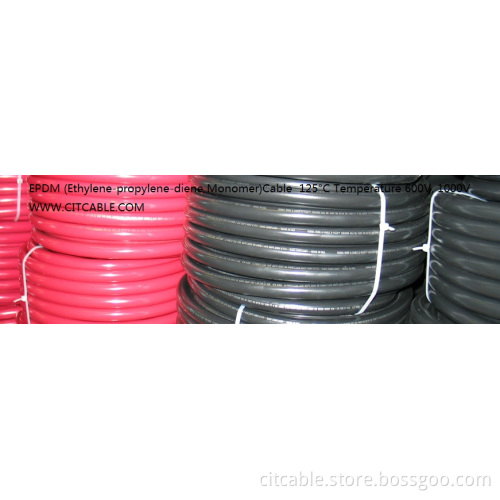

EPDM Cable (125°C) 600 Volts

EPDM Cable Applications:

Can be used as appliance wire and as lead wire for motors, ballasts, transformers, coils or solenoids where high temperature is required.

Widely used high temperature cable

EPDM lead wire has great dielectric strength, mechanical properties, and provides strong abrasion resistance. Since this product offers outstanding flexibility in either high or low temperatures, EPDM is commonly used as a high temperature lead wire.
