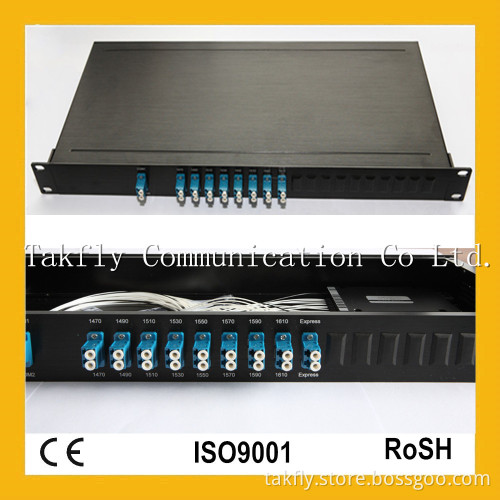

1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
  • 1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
  • 1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
  • 1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
  • 1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
  • 1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
  • 1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM

1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM

Get Latest Price
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Payment Type: L/C, T/T, D/P, Paypal, Money Gram, Western Union
Product Description
Product Description

Packaging & Delivery:

Packaging Detail:box & carton or customized package for CWDM Mux Demux



Delivery Detail:1-7 days for CWDM Mux Demux


Features:
-Low Insertion Loss
-Low PDL
-High Isolation
-Excellent Environment Reliability

Applications:
-Line Monitoring
-WDM System
-LAN
-CATV System
-Fiber Optical amplifier

CWDM can save fiber resources and networking cost effectively. It can solve optical fiber shortages and many transparent business transmission. It is used in intracity networks converge and access layer, in addition, it can build network and develop business in a short time. It is a low cost and high-performance transmission solutions with the advantages of low power consumption and mini size.

1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
1310 Mux Demux LC Adapter CATV FTTH Rack Mount/Fiber Optic/CWDM
Configuration Channel No. Channel Pigtail Type Fiber length Dimensio (mm) Connector
M=Mux D=Demux  04=4Channel
08=8Channel
16=16Channel

N=NChannel
^^		 27=1270nm
47=1470nm
49=1490nm
 ^^
61=1610nm
SS=special^		 0=250um
1=900um
2=2.0mm
3=3.0mm		 1=1m
2=1.5m
3=others		 1=L100 x W80 xH10
2=L140xW100xH15
3=19 1U Rack		 0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=others
Parameter 4 Channel 8 Channel 16 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.5
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel  Ripple (dB) 0.3
Isolation (dB) Adjacent  N/A >30 N/A >30 N/A >30
Non-adjacent  N/A >40 N/A >40 N/A >40
Insertion Loss Temperature Sensitivity (dB/C) <0.005
Wavelength Temperature Shifting (nm/C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (PS) <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Operating Temperature (C) -5~+75
Storage Temperature (C) -40~85
Package dimension (mm) 1.       L100 x W80 x H10 ( 2 CH~8CH Module)
2.       L140xW100xH15  (9 CH~18CH Module))
