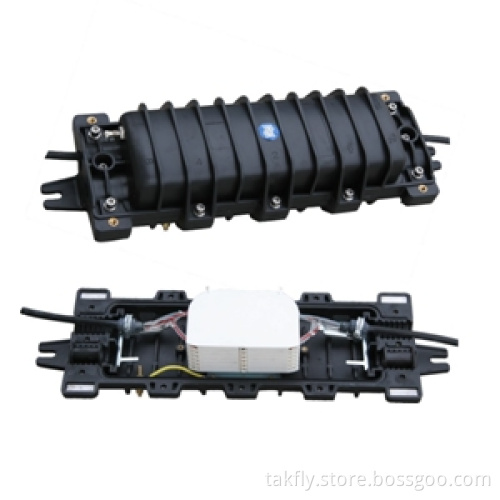

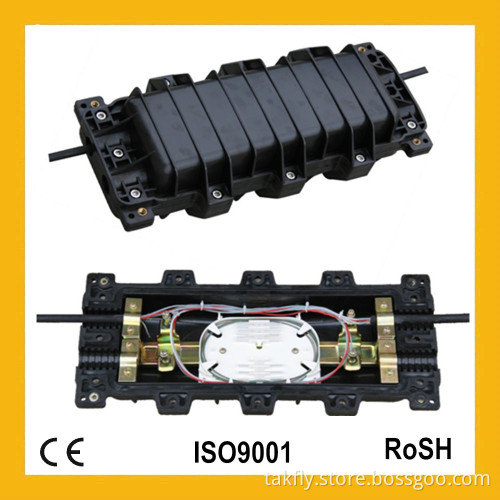

144cores Horizontal Waterproof Fiber Optic/Joint Box/Splice Closure

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

Packaging Detail:Package with carton box 6 pcs per box or customer requirement .

Delivery Detail:7-10 days

1. Resistant to chemicals and corrosive atmosphere
2. Perfectly water and air proof
3. High quality
4. reasonable price

Features :

Advanced internal structure design
Easy and fast to fix fiber cable
Easy to re-enter,it never requires re-entry kits
Fiber Optic Splice Trays are designed in SLIDE-IN -LOCK and its opening angle is above 90
The curved diameter meets with international standard.
Easy and fast to increase and reduce.
Innovative elastic integrated seal fitting .
The closure is spacious enough for winding and storing fibers

Scope of application

aerial, underground, pipeline, handhole.

No.		Name of components	Quantity	Usage	Remarks
1		Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 378x136 (mm)
2		Insert plate	2 pairs	Fixing the housing	175x56x30(mm)
3		Fiber optic splice tray (FOST)	Max 4 pieces (either bunchy or ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:6,12,24(cores) Ribbon:3,6 (pieces)
4		Foundation	1 set	Fixing reinforced core of fiber- cable and FOST
5		Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
6		Port plug	6 pieces	Sealing empty ports
7	Pressure testing valve		1 set	After injecting air, it is used for pressure testing and sealing testing	Configuration as per requirement
8	Earthing deriving device		1 set	Deriving metallic components of fiber cable in FOSC for earthing connection	Configuration as per requirement
