High Quality Water Proof Pigtail Cable

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

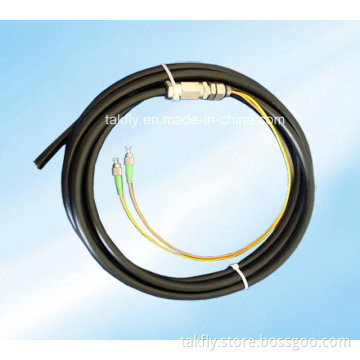

Water-proof pigtail cable

Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.

Water-proof fiber pigtail cable is a length of fiber with one-end connector attached, suitable for outdoor use and adverse environmental condition.

Features:

Fiber core: 2, 4, 6, 8 optional

Waterproof features & reliable performance

Pull & erosion resistance, good grounding

Low insertion loss, high return loss, excellent exchangeability, high stability

The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.

Application:

CATV & LAN

Data & Communication System

Connection for main fiber and optical receiver

arameter	Unit	Waterproof fiber pigtail cable
						SM				MM
						PC	UPC	APC	PC
Insertion loss (typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30
Operating wavelength	nm	1310, 1510
Exchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature		-40~75
Storage temperature		-45~85
Cord diameter	mm	φ3.0,φ2.0,φ0.9
Fiber count	F	4, 6, 8, 12, 24, ^ fibers
Applicable connector		FC, SC, ST, MU, LC
