Product Description

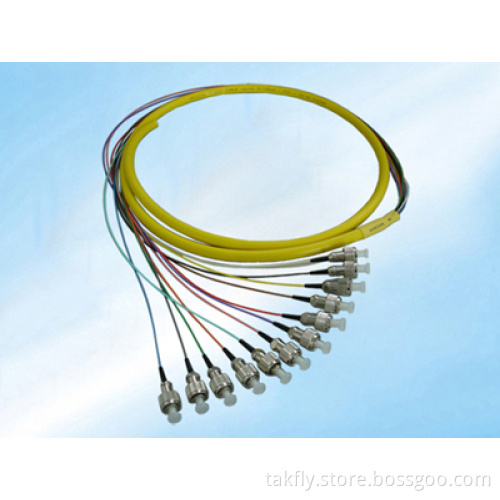

Bundle multi-fiber pigtail

Details:

Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.

Bundle multi-fiber pigtail

Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Application:
Test equipment
Optical CATV & LAN
Telecommunication networks
Optical communication networks

Single Mode Bundle Multi-Fiber Optic Pigtail

Parameter	Unit	Bundle multi-fiber connector
					SM
					PC	UPC	APC
Insertion loss (typical)	dB	≤0.3	≤0.2	≤0.3
Return loss	dB	≥45	≥50	≥60
Operating wavelength	nm	1310, 1510
Exchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	ºC	-40~75
Storage temperature	ºC	-45~85
Cord diameter	mm	φ3.0,φ2.0,φ0.9
Fiber count	F	4, 6, 8, 12, 24, ^ fibers
Applicable connector		FC, SC, ST, MU, LC
