High Quality Security System 1800kg Sliding Gate Operator
- Payment Type:
- L/C, T/T, Money Gram, Western Union
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C, T/T, Money Gram, Western Union |

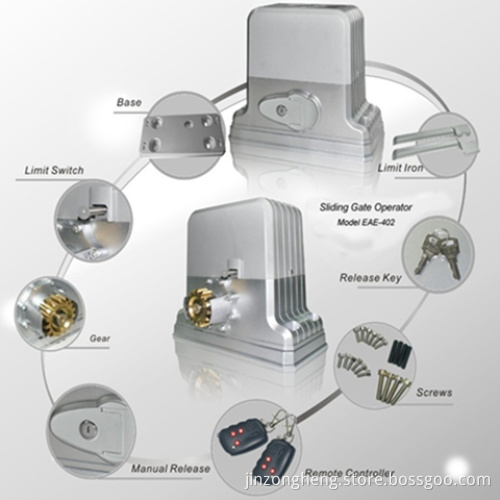

Automatic sliding gate operator
Features:
1. Keypad/single button interface.
2.Photo beam safety beam interface.
3.User can select Auto-close function.
4.Manual key release design for emergency purposes.
Technical data:
1. Power supply 220V/240V, 50Hz 110V, 60Hz
2.Motor speed 42rpm 47rpm
3.Rated output power of motor 150W
4.Remote control operating distance 30m (Frequency: 433.92mHz)
5.Remote control mode Single button
6.Output shaft height 58.5mm
7.Max. gate weight 18000Kg
8.Output torque 14Nm
9.Limit switch Spring limit switch or magnetic limit switch
10.Noise ≤60dB
11.Duty cycle S2, 15 minutes
12.extra remote control 20
13.Environmental temperature -20°C~+50°C
14.Gate move speed 12m/min
| Model | EAE-402 | |
| Voltage | 220V± 10% | 110V± 10% |
| Frequency | 50Hz | 60Hz |
| Current | 2,7A | 5.8A |
| Motor voltage | AC 220V/110V | |
| Capacitor | 20 μ F | 60μ F +14 μ F |
| Power | 350W | |
| Torque | 35nm | |
| Motor number | M=4 | |
| Motor speed | 1350rpm | 1620rpm |
| Gear speed | 58.8rpm | 70.2rpm |
| Travel speed | 11m/min | 13.2m/min |
| Working temperature | - 40 °C~ 55 °C | |
| Overload protection temperature | 130 °C | |
| Motor making technique | Die casting aluminum alloy | |
| Manual Release | Yes | |
| Remote distance | ≥ 30m | |
| Net weight | 10kg | |
| Max, weight of gate | 1800kg | |
