IEC60065 Mandrel Test Device China

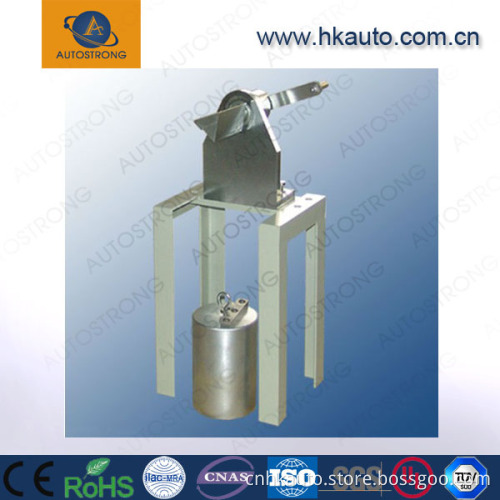

IEC60065 Mandrel Test Equipment

This test is conforms to IEC60558-1 Fig6 and IEC60065 Fig14--16. The test shall be performed by fixing the specimens of thin sheets on a mandrel made of nickel plated steel or brass with smooth surface finish.

A metal foil shall be placed closely to the surface of the specimen and subjected to a pull force of 1 N. The metal foil shall be so positioned that its borders are 20 mm away from the borders of the specimen, and when the mandrel is in its final position, it covers the edges upon which the specimen is lying by at least 10 mm.

The specimen is held in place at its free end by an appropriate clamping device and subjected to:
A pull force of 150 N for a specimen consisting of several non separable layers;
A pull force of 100 N for a specimen consisting of 2/3 the number of separated layers
A pull force of 50 N for a specimen consisting of a single layer (serrated or not).
Include weigh: 150N*1 and 1N*1.

Advantages:

1.1 year warranty
2. ISO17025 is free offered
3. ILAC and CNAS can be offered if required
4. ISO9001, CE, ROHS, SGS certification
5. Our export products are in English data, no chinese.
6. For machines, we can offer video for customer reference

Advantages:

1.1 year warranty
2. ISO17025 is free offered
3. ILAC and CNAS can be offered if required
4. ISO9001, CE, ROHS, SGS certification
5. Our export products are in English data, no chinese.
6. For machines, we can offer video for customer reference
