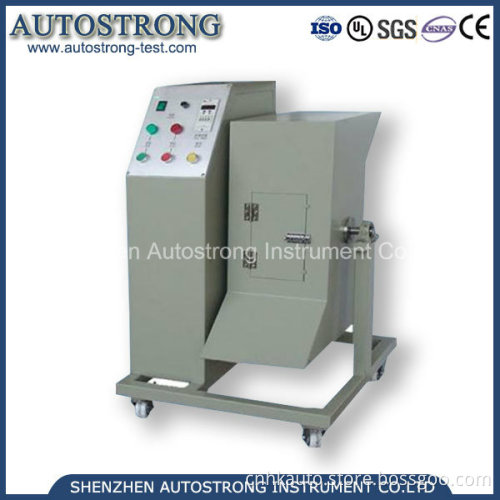

Tumbling Barrel Test Machine (AUTO-GT)

Tumbling Barrel Drop Test Machine (AUTO-GT)

Application:

The Tumbling Barrel Test Machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.

The Tumbling Barrel Tester is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant specification.


Product details:
The Tumbling Barrel Tester is made to the specifications set forth in major international standards.
The Tumbling Barrel Tester employs a large clear acrylic access door for easy viewing and access to the chamber. Models are offered with a standard barrel with a drop height of 500mm. Barrels of other sizes are available as well for standards such as IEC 60312 or DIN 60312 where a drop height of 800mm (or 1000mm)is required.
