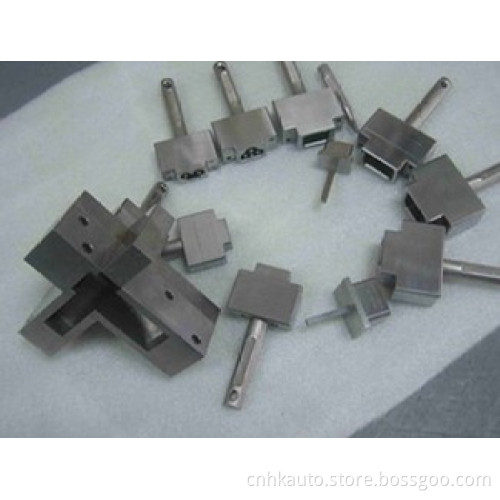

IEC60320 Go Gauge for Connector

IEC60320-1-Figure 2
"Go" gauge for connectors to standard sheet C1

IEC60320-1- Figure4
"Go" gauge for connectors to standard sheet C5

IEC60320-1- Figure5
"Go" gauge for connectors to standard sheet C7

IEC60320-1- Figure5A
"Go" gauge for side-entry connectors to standard sheet C7

IEC60320-1- Figure6
"Not Go" gauge for connectors to standard sheet C1

IEC60320-1- Figure7
"Not Go" gauge for connectors to standard sheet C1, C5 and C7

IEC60320-1- Figure8
"Not Go" gauge for connectors to standard sheet C1 and C7

IEC60320-1- Figure9
"Not Go" gauge for appliance inlets to standard sheet C8, C8A and C8B

IEC60320-1- Figure9A
"Go" gauge for connectors to standard sheet C9

IEC60320-1- Figure9B
"Not Go" gauge for connectors to standard sheet C9

IEC60320-1- Figure9C
"Go" gauge for appliance inlets to standard sheet C10

IEC60320-1- Figure9F
"Go" gauge for connectors to standard sheet C13

IEC60320-1- Figure9G
"Not Go" gauge for connectors to standard sheet C13 and C17

IEC60320-1- Figure 9H
"Go" gauge for appliance inlets to standard sheets C14, C16 AND C18

IEC60320-1- Figure 9J
"Go" gauge for connectors to standard sheet C15

IEC60320-1- Figure 9K
"Go" gauge for connectors to standard sheet C17

IEC60320-1- Figure 9L
"Go" gauge for connectors to standard sheet C19

IEC60320-1- Figure 9M
"Go" gauge for appliance inlets to standard sheet C20 and C24

IEC60320-1- Figure 9N

"Go" gauge for connectors to standard sheet C21
IEC60320-1- Figure 9P
"Go" gauge for appliance inlets to standard sheet C22

IEC60320-1- Figure 9Q
"Go" gauge for appliance inlets to standard sheet C23

IEC60320-1- Figure 9R
"Not Go" gauge for connectors to standard sheet C13, C15 and C17

IEC60320-1- Figure 9S
"Go" gauge for connectors to standard sheet C15A

IEC60320-1- Figure 9T
"Go" gauge for appliance inlets to standard sheet C16A

IEC60320-1- Figure 22
Blades for checking the resisitance against deformation of the front part of the connector to standard sheet C7

IEC60320-1- Figure 27
Gauges for checking the distance form the engagement face of connectors to the point of first contact
