VDE0620-1 Plugs and Socket-Outlets Gauges for Household Safety

VDE0620-1 Plugs and socket-outlets Gauges for household safety

Weclome to contact us for more details:
Mobile: 86-15818665781

Autostrong offers a wide range of gauge to meet the most common standards including those from
IEC6096891, IEC60061, IEC60320, EN61184, UL49441, UL498, GB, DIN, VDE and other similar international standards. Such standards require the checking of size &definition etc, these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60HRC and a roughness according to standard require.

Germany plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of VDE0620-1: 2010-02.

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to VDE0620-1: 2010-02 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;

Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);

Material hardness is more than 60HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable

Plug Gauges Details:

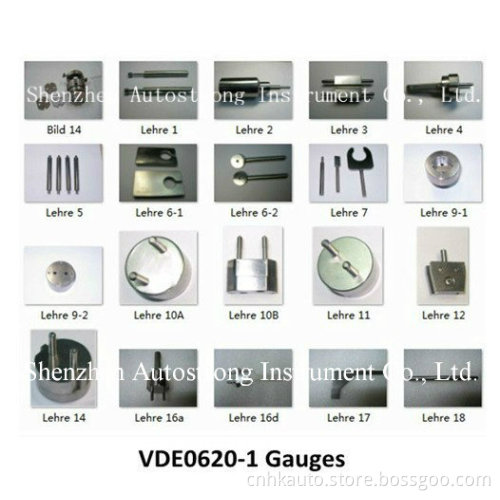

VDE DIN 0620-1 Gauges List:
DIN-VDE0620-1-Lehre1
DIN-VDE0620-1-Lehre2
DIN-VDE0620-1-Lehre3
DIN-VDE0620-1-Lehre4
DIN-VDE0620-1-Lehre5
DIN-VDE0620-1-Lehre6
DIN-VDE0620-1-Lehre7
DIN-VDE0620-1-Lehre8
DIN-VDE0620-1-Lehre9
DIN-VDE0620-1-Lehre10-A
DIN-VDE0620-1-Lehre10-B
DIN-VDE0620-1-Lehre11
DIN-VDE0620-1-Lehre12
DIN-VDE0620-1-Lehre14
DIN-VDE0620-1-Fig15
DIN-VDE0620-1-Lehre16A
DIN-VDE0620-1-Lehre16b
DIN-VDE0620-1-Lehre17
DIN-VDE0620-1-Lehre18
DIN-VDE0620-1-EN50075
DIN-VDE0620-1-49440-L1
DIN-VDE0620-1-49440-L2
DIN-VDE0620-1-49440-L1-L2
DIN-VDE0620-1-Bild15
DIN-VDE0620-1-Bild14
DIN-VDE0620-1-Bild43
DIN-VDE0620-1-1-16e
DIN-VDE0620-1-1-19A
DIN-VDE0620-1-1-19b
DIN-VDE0620-1-Bild16A
DIN-VDE0620-1-Bild16D
