Accurate High-Quality Ball-Pressure Apparatus for Bal-Pressure Test

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

1.Application:
l Ball pressure tester is used for testing parts of non-metallic materials for resistance to heat.It is applicable to electro technical equipment,its subassemblies and components,and to solid electrical insulating materials except ceramics.
l In this test,a conditioned specimen is placed on a preheated support and subjected to a force of 20n applied through a 5 mm steel ball.The test stand,specimen and loading device are then kept in an oven at an elevated temperature for an hour.After the hour,the loading device is removed from the sample,the sample is cooled and any indentation is measured.It is important to assure that the test stand has reached a stale elevated temperature as required by the test.For this reason,the SFT ball pressure tester comes equipped with a thermocouple that inserts into the test stand so its temperature can be monitored.

2.Basic introduction:

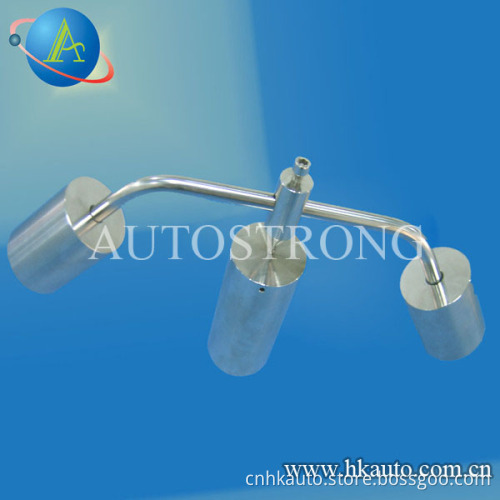

l Ball Pressure Apparatus/Tester is the requirement ball (R2.5mm) and total test force 20N ± 0.2N ball pressure testing device,pressure level of the state and was placed in the heating chamber on the surface of the test.
l In the test temperature specified by the after 60min +2 min/0min,the test quickly (<10s) immersed in 20 °C ± 5 °C water cooling 6min ± 2min,3min removed from the water surface within the indentation diameter measurement test, as the indentation is more than 2mm in diameter to evaluate the test specified in the heat deformation temperature.

3.Technical parameters:
Accurate High-Quality Ball-Pressure Apparatus for Bal-Pressure Test

HONGKONG AUTOSTRONG TECHNOLOGY CO.,LTD

HONGKONG AUTOSTRONG TECHNOLOGY CO,.LTD is a high-tech company in Hongkong,who is engaged in research and development,manufacture of test instrument,whose headquater is in Kowloon,Hongkong,with branch offices in Shenzhen.
AUTOSTRONG is one of leading enterprises in Hongkong on R&D and manufacture of testing instruments.we supply standard or customized solutions and products for many test,measurement and quality control tasks required in the world of cable,wire,socket,plug,switch,plastic and rubber testing.All of our products are complying with the requirements of many standards,such as IEC,UL,VDE,VS,JIS,GB and so on.
Products include:Glow wire tester, Needle flame tester, horizontal and vertical burning tester, tracking tester ,textile burning tester,protective clothing thermal conductivity tester,automotive interior combustion tester ,melt dripping tester,building materials flammability tester,friction tester,test finger,spring hammer,universal testing machinge and other testing instruments.
AUTOSTRONG strategic cooperation with Germany WAZAU,Germany PTL company,Germany FISCHER,Japanese minebea,and on going technical exchange.
AUTOSTRONG spirit:integration of science and wisdom,quality and service co-exist,face to the world,to achieve a win-win for the supply and demand.
