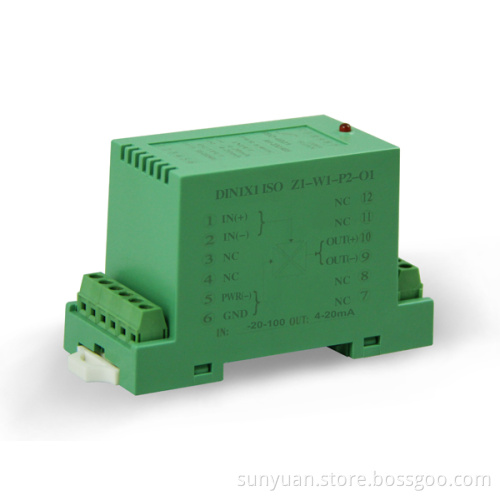

Rail-Mounted Rtd (PT100/PT10/Cu100/Cu50) to Current/Voltage Isolation Transmitter (DIN35 ISO Z-W-P-O)

DIN Rail-Mounted Thermal Resistance Isolation Transmitter

Main Features:

Three-wire, four-wire or two-wire PT100/PT1000 thermal resistance signal input
Accuracy, Linearization error grade: 0.2
Linearization disposal and long line compensate circuit
Isolation Voltage: 3000VDC input/power/output
Power: 5V/12V/15V/24VDC or 110VAC/220VAC
International standard signal output: 4-20mA/0-5V/0-10V etc.
Small size, low cost
Standard DIN Rail-mounted: DIN 1x1
Industrial temperature range: - 45 ~ + 85 º C

Model Selection
DIN ISO Z - W - P - O

Z: RTD Type
Z1: Pt100 Z2: Pt10
Z3: Cu100 Z4: Cu50

W: Input Temperature Range
W1: -20-100º C
W2: 0-100º C
W3: 0-150º C
W4: 0-200º C
W5: 0-400º C
W8: User-defined

P: Power Supply
P1: DC24V P2: DC12V
P3: DC5V P4: DC15V P8: User-defined

O: Output Signal
O1: 4-20mA O2: 0-20mA O4: 0-5V O5: 0-10V
O6: 1-5V O8: User-defined

E. G.: Signal Input: Pt100, temperature range: 0~100º C; Signal output: 4-20mA; Power: 24V

Part No.: DIN1x1 ISO Z1-W1-P1-O1
