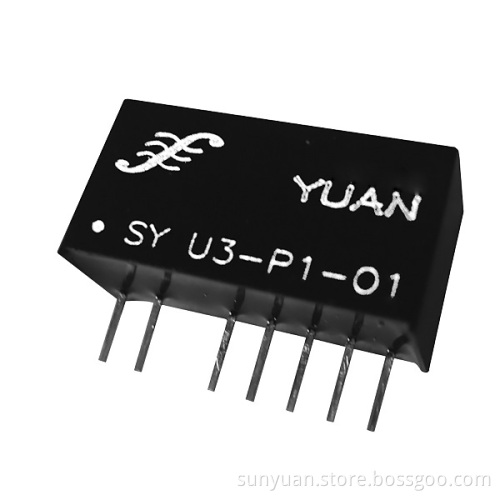

Non-Isolated Amplifier /Converter (SY U(A)-P-O Series)

Non-isolated Signal converter/amplifier
Specification:
SY-A(U)-P-O is a non-isolated signal converter/transmitter, which provide convenience in converting high impedence signals to low impedence ones. The device is extremely small in size and very easy to use. No external components are needed to make it operating. The module integrates DC/DC converter and analog amplifier into a single chip. It is mainly used in circumstances where A/V signals nees toconvert into each other and isolation is no required.

General characteristic:
Low cost, small size, SIP 8 anti- fire UL94V-0 package
No external component, no "ZERO"and "G. Adj" adjustment needed.
Power supply/signal two port isolation: 1000VAC
Assistant power: 5VDC/12VDC/15VDC/24VDC
0.4-2V/0.5-2.5V/1-5V/2-10V
Voltage signal or 0-10mA/0-20mA/4-20mA current signal
0-20mA/4-20mA/0-5V/0-10V signal output
Temperature range: -45~+85 º C

Applications:
Can make sensor resistance change from high to low
No distortion in long distance signal transmission
Analog signal data acquisition
4-20mA/0-5V signal isolation and transfer
Equipment and sensor signal acquisition
Signal transmit no-distortion
Ground interference control
