DC DC Converter with Fixed Voltage Input, Regulated Dual Output

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal, Western Union

Product Description

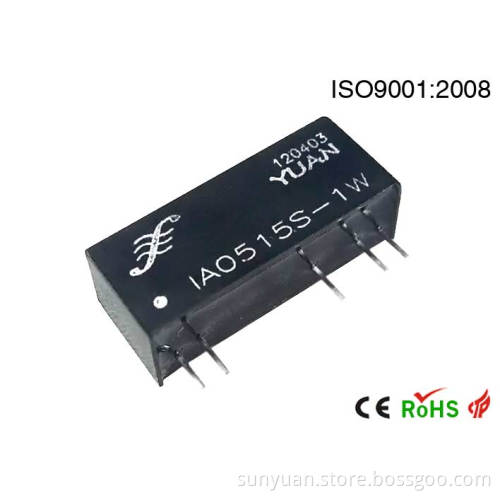

IAxxxxS-1W Regulated Output DC-DC Converter

DC-DC Converter Features:
-Rated 1W Output
-Positive Cathode Voltage Output
-High Power Density
-Small Footprint
-SIP and DIP Package Style
-Industrial Standard Pin-out
-UL94-VO Package
-No Heat Sink Required
-1kVDC Isolation
-Fixed Input Voltage
-Regulated Output Voltage
-Temperature Rang: -40 ~+85
-PCB Mounting
-No External Components Required
-Custom Service Available
-Available Inputs:
3.3, 5, 9, 12, 15 and 24 VDC
-Available Outputs:
(+/-) 5, 9, 12, 15 and 24 VDC.

ELECTRICAL SPECIFICATIONS:

(All specifications tested typically @ 25° C, humidity< 75%, nominal input and rated outputunless otherwise noted. )

OUTPUT SPECIFICATIONS
Items:	Testing condition	Min	Typ	Max
Output accuracy:	At full load and nominal Vin			± 2%
Output power:		0.1W		1W
Line regulation:	Input voltage from low to full load			0.5
Load regulation:	From 20% to full load			2%
Ripple and noise:	20MHz bandwidth			20mVp-p
Temperature drift:				± 0.02%/° C
Minimum load				10%
Switching frequency			80K HZ
Short circuit protection		60s

INPUT SPECIFICATIONS
Items:	Testing condition	Min	Typ	Max
Input voltage range	3.3 VDC nominal input	3.1-3.46
	5 VDC nominal input	4.75-5.25
	9 VDC nominal input	8.55-9.45
	12VDC nominal input	11.4-12.6
	15 VDC nominal input	14.25-15.75
	24VDC nominal input	22.85-25.26

COMMON SPECIFICATIONS
Items		Min	Typ.	Max
Operating temperature range		-40° C		+85° C
Storage temperature range		-55° C		+125° C
Humidity				< 75%
Cooling	Free Air Convection
Isolation voltage (VDC)	Input to Output		1, 000
Isolation resistance (ohms)			10 9
Isolation capacitance (pF)				60
Efficiency (%)	See Product List	60		85
Case material	Non-conductive black plastic
Potting material	Epoxy Resin UL94-V0
Packing material	Tube
Dimension (mm / inch)	27.508.8011.00 (1.080.340.43)
Weight (g)	10
MTBF (Hrs)	> 1, 000, 000

PRODUCT LIST
Part Number	Input Voltage (VDC)			Output		Efficiency (%, Typ. )	Package
Part Number	Range	Nominal	Max.	Current (mA)	Voltage (VDC)	Efficiency (%, Typ. )	Package
IA0503S-1W	4.75-5.25	5	5.25	± 100	± 3.3	63	SIP
IA0505S-1W	4.75-5.25	5	5.25	± 100	± 5	77	SIP
IA0512S-1W	4.75-5.25	5	5.25	± 42	± 12	66	SIP
IA1205S-1W	11.4-12.6	12	12.6	± 100	± 5	68	SIP
IA1212S-1W	11.4-12.6	12	12.6	± 42	± 12	69	SIP
IA1209S-1W	11.4-12.6	24	12.6	± 55	± 9	68	SIP
IA2405S-1W	22.85-25.26	24	25.26.	± 100	± 5	75	SIP
IA2409S-1W	22.85-25.26	24	25.26	± 53	± 9	72	SIP
IA2412S-1W	22.85-25.26	24	25.26	± 42	± 12	76	SIP
