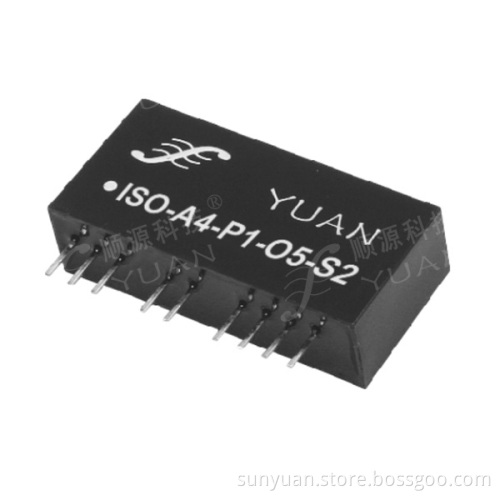

DC V/I Signal Isolated Distributor (ISO U(A)-P-O-S)

General characteristic:

Low cost, small size, SIP 12 anti- fire UL94V-0 package
Can adjust "Zero"and "Gain"
Three-port (power/input/output) isolation: 3000VDC
Assistant power: 5VDC/12VDC/15VDC/24VDC
0-5V/0-10Vvoltage signal or 0-10mA/0-20mA/4-20mA/ current signal
Isolation and transfer
Input port with a isolated power supply
With good anti-jamming capability

Applications:

Two wires sensor distributor and signal transmission
No distortion in long distance signal transmission
Analog signal data acquisition
4-20mA(0-20mA)/0-5V signal isolation and transfer
Equipment and sensor signal acquisition
Signal transmit no-distortion
Electric power, distant control, isolated safe bar
Ground interference control

Specification:

ISO-U(A)-O series is a hybrid integrated circuit, this IC isolates and transfers DC signal signa, and make them linear
Correspondence to input signal. There is a isolated power supply on input port, and common ground with input signal. They are
Widely used in Electric power, distant control, instrument, medical instrument, and industrial control industries.

Part number and description:

ISO- U(A) - P -O -S
