High Current Output Signal Isolated Amplifier (0~100mA/0~500mA/0~1A)

0-10mA|4-20mA|0-5V|1-5V|0-10V High Current Output Signal Isolated Amplifier
0~100mA/0~500mA/0~1A output current

High Current Output Signal Isolation Amplifer Features:
-Accuracy: 0.1/0.2/0.5
-4-20mA/0-5V/0-10V standard input signal
-0~100mA/0~500mA/0~1A current signal output
-Or 0~1V(max 1A)/0~5V(max 500mA) voltage signal output
-Input/output isolation(3000VDC)
-Power supply: 12VDC/15VDC/24VDC etc.
-Between power supply and output signal are non-isolated

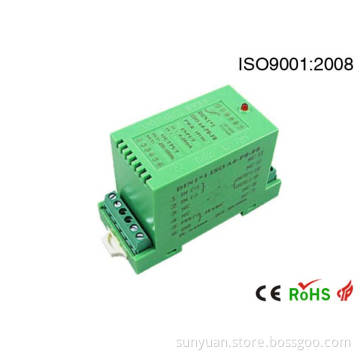

-Standard DIN rail-mounted, industrial temperature: - 45 ~ + 80 deg. C

Application:
Industrial signal isolation and amplifier
Current signal amplifier or strengthen voltage signal drive capability
Electromagnetism valve or proportion valve linearity drivers.
Magnistor linearity controller
Electromagnetism drive coils or high power load
Ground-loop elimination

High Current Output Signal Isolation Amplifier Model Selection:
DIN 1X1 ISO L- U(A) - P - O

ISO: Input/output isolated Output Signal:
Default: Input/output non-isolated

Signal Type:
S: Switching input and output
L: Linearity input and output

Input Signal:
U1: 0-5V A1: 0_1mA
U2: 0-10V A2: 0_10mA
U3: 0-75mV A3: 0_20mA

Output Signal:
O4: 0-5V(max 500mA)
O5: 0-10V(max 200mA)
O6: 1-5V(max 500mA)
O7: User-defined
O8: 0-1A(max 2Ω )
O9: 0-500mA(max10Ω )

Power Supply:
P1: DC24V P2: DC12V
P3: DC5V P4: DC15V
P5: User-defined
