0-20mA 4-20mA to 0-5V 0-10V Signal Converter with Gain/ Zero Adjustment

0-20mA 4-20mA to 0-5V 0-10V Signal Converter with Gain/ Zero Adjustment

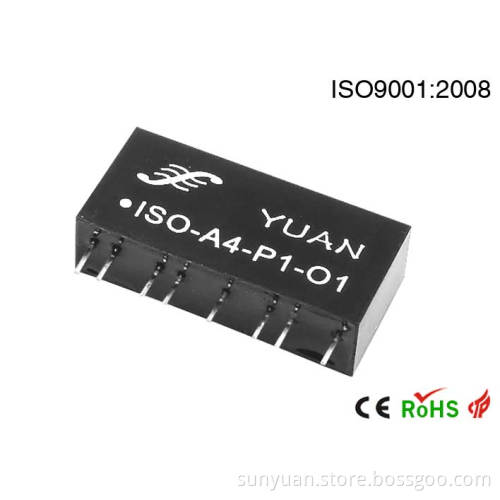

ISO U(A)-P-O Series General characteristic:
Low cost, small size, SIP 12 anti- fire UL94V-0 package
Adjust "Zero" and "Gain" with external potentiometer
Three-port (power/input/output) isolation: 3000VDC
Assistant power: 5VDC/12VDC/15VDC/24VDC
0-75mV/0-2.5V/0-5V/0-10V voltage signal and 0-1mA/0-10mA/0-20mA/4-20mA/ current signal isolation, amplifier and transfer
Temperature range: -45º C~+85 º C
Good anti-jamming EMC and high frequency signal capability

Applications:
DC current/voltage signal isolated/transfer/amplifier
Signal Isolation and long-term transmission on industrial site.
Ground interference control, and Analog signal data acquisition
Equipment and sensor signal transfer and receive
Non electrical quantity signal transmit
No distortion in long distance signal transmission
Electric power, distant control, isolated safe bar
4-20mA sensor analog signal transmission by one in one out and two in two out 's

Description:
ISO series DC voltage isolated amplifier is a kind of Hybrid IC that make input signal conversion/isolation and amplification then output DC signal in propotion. It's widely used in Electric power, distant control, instrument, medical instrument, and industrial control industries.
ISO series optical isolator adopt DC signal analog modulation technology, not same as the ISOEM Series signal Carrier technology. ISO Series optical isolator have better capacity of anti EMI of EMC, and interference of high frequency signal.
Efficiency grade0.1, 0.2,
High load capability.
Extremely high linearity in full range ability (nonlinearity<2%).
