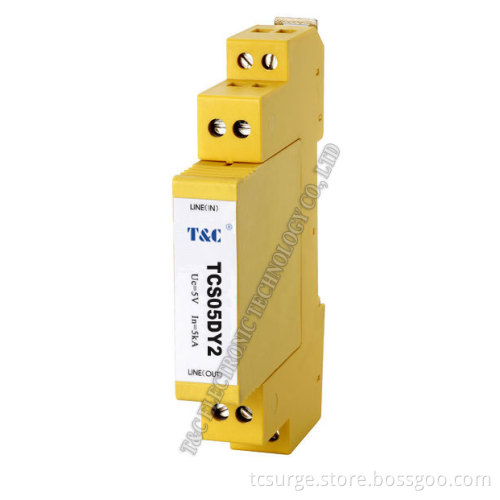

Signal Surge Protector/Surge Arrester (TCS05DY2)

Signal Surge Protector/Surge Arrester (TCS05DY2)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Feature of Signal Surge suppressor/ Signal protector:
1. Heavy discharge current.
2. Multilevel protection.
3. Famous brabd if core components with excellent capability
4. Fast response.
5. Excellent transmission performance.
6. Low residual voltage.
7. Simple struture, easy installation and maintenance.

Application:
Surge suppressor is mainly used to protect equipments of transmitting signals by twisted pair, coaxial cable or carrier wave of digital signal such as telephone exchange, telephone line, fax equipments, MODEM, ADSL and ISDN against over-voltage caused by lightning.

Type	TCS05DY2	TCS12DY2	TCS24DY2	TCS05DY3	TCS12DY3	TCS24DY3
Un	5V	12V	24V	5V	12V	24V
Uc	6V	15V	30V	6V	15V	30V
In	5kA	5kA	5kA	5kA	5kA	5kA
Imax	10kA	10kA	10kA	10kA	10kA	10kA
Up	≤30V	≤50V	≤70V	≤30V	≤50V	≤70V
Vs	2MHz	2MHz	2MHz	2MHz	2MHz	2MHz
Series-impedance	2.7Ω	2.7Ω	2.7Ω	2.7Ω	2.7Ω	2.7Ω
Parallel-cap	≤2nF	≤2nF	≤2nF	≤2nF	≤2nF	≤2nF
Protection-mode	common mode	common mode	common mode	common mode	common mode	common mode
Dimension(mm)	25×25×54	25×25×54	25×25×54	25×25×54	25×25×54	25×25×54
Mountion	35mm DIN-rail
Environment	Temperature -40~+70ºC ; Relative humidity≤95% ; Altitued≤3km
Re.standard	IEC61643-21 ; YD/T1542-2006
