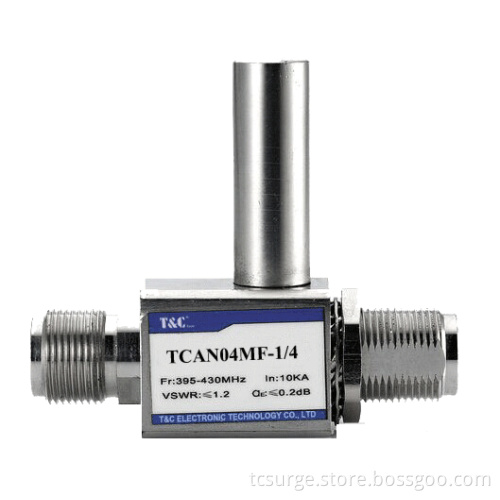

Antenna Lightning Protector/ Surge Protector/Surge Arrester (TCAN04MF-1/4)

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	T/T, Paypal, Western Union

Product Description

Feature of lightning protector/SPD:
1. Heavy discharge current, No feeding current foe conventional type.
2. Low insertion loss, Small VSWR.
3. Low residual voltage.
4. Simple structure, easy installation and mainenance.

Application:
Antenna lightning protector is mainly used to protect the trransmitting & receiving system of RF signal such as satellite antenna, microwave, mobile communication and intercom system antena, radar antenna against lightning over-voltage, inducing over-voltage and static discharge.

I/O Mode	In-Male	In-Male	In-Female	Im-Female
I/O Mode	Out-Male	Out-Female	Out-Male	Out-Female
Code	MM	MF	FM	FF
Connector Type		DIN(7/16L29)	N	TNC	SMA	BNC	F
Code		D	N	T	S	B	F
Type	TCAD22MF70-1/4	TCAD25MF-1/4	TCAN04MF-1/4	TCAN25MF-1/4
Fr	800-2200MHz	824-2500MHz	390-420MHz	824-2500MHz
Uc	≤48V	/	/	/
In	10kA	20kA	20kA	20kA
Imax	20kA	30kA	30kA	30kA
Up	≤40V	≤60V	≤40V	≤60V
Insertion loss	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
VSWR	≤1.2	≤1.2	≤1.2	≤1.2
Connector	DIN-J/K;TNC-K	DIN-J/K	N-J/K	N-J/K
APP.	GSM,3G	GSM,CDMA	SCDMA, PHS	GSM,CDMA
Re.standard	IEC61643-21; YD/T1542-2006
Environment	Temperature -40~+70°C; Relative hunidity≤95%; Altitude≤3 km
