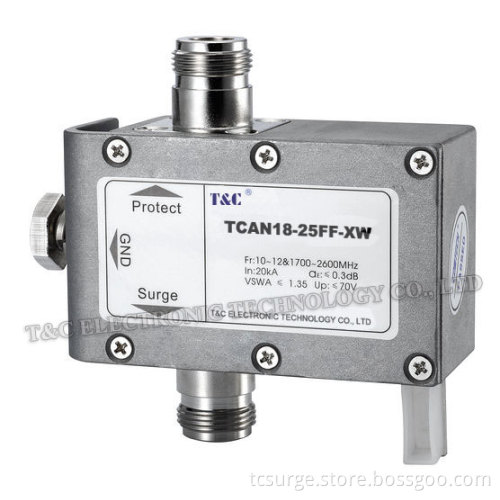

Antenna Surge Protector/Surge Arrester (TCAN18-25FF-XW)

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	T/T, Paypal, Western Union

Product Description

Feature of Surge suppressor:
1. Heavy discharge current, wide frequency band, Direct current feeding.
2. Low residual voltage.
3. Famous brand of core components with excellent capability.
4. Low insertion loss, Small VSWR.
5. Simple structure, easy installation and mainenance.

Application:
Surge suppressor is mainly used to protect the trransmitting & receiving system of RF signal such as satellite antenna, microwave, mobile communication and intercom system antena, radar antenna against lightning over-voltage, inducing over-voltage and static discharge.

Specification:

I/O Mode	In-Male Out-Male	In-Male Out-Female	In-Female Out-Male	Im-Female Out-Female

Code	MM	MF	FM	FF

Connector Type		DIN(7/16L29)	N	TNC	SMA	BNC	F
Code		D	N	T	S	B	F

Type	TCAN04FF-XW	TCAN18-25FF-XW	TCAN16FM08
Fr	10-12;395-430MHz	10-12;1700-2600MHz	1450-1650MHz
Uc	36V	36V	8V
In	10kA	10kA	10kA
Imax	20kA	20kA	20kA
Up	≤70V	≤70V	≤50V
Insertion loss	≤0.2dB	≤0.3dB	≤0.2dB
VSWR	≤1.2	≤1.35	≤1.2
Dimension(mm)	764532.5	764532.5	974332.5
Connector	N-J/K	N-J/K	N-K/J
APP.	SCDMA	Customization	GPS
Re.standard	IEC61643-21; YD/T1542-2006
Environment	Temperature -40~+70°C; Relative hunidity≤95%; Altitude≤3 km
