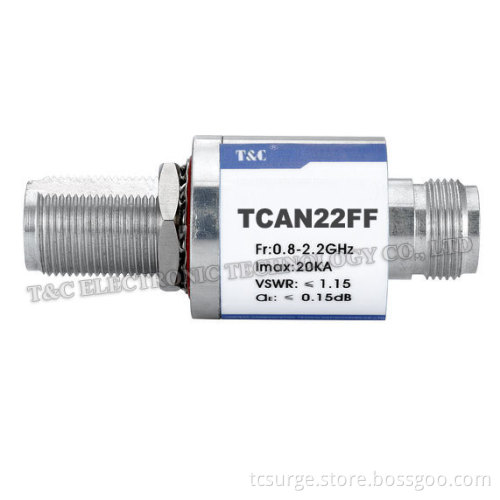

Antenna Surge Protector/Surge Arrester (TCAN22FF)

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China
Payment Type:	T/T, Paypal, Western Union

Product Description

Feature of Protection Device/SPD:
1. No feeding current, band-pass form.
2. Low residual voltage.
3. Low insertion loss, Small VSWR.
4. Simple structure, easy installation and mainenance.

Application:
Protective Device is mainly used to protect the trransmitting & receiving system of RF signal such as satellite antenna, microwave, mobile communication and intercom system antena, radar antenna against lightning over-voltage, inducing over-voltage and static discharge.

Specification:

I/O Mode	In-Male Out-Male	In-Male Out-Female	In-Female Out-Male	Im-Female Out-Female

Code	MM	MF	FM	FF

Connector Type		DIN(7/16L29)	N	TNC	SMA	BNC	F
Code		D	N	T	S	B	F

Type	TCAN22FF	TCAT04MF-S	TCAN20MF-S
Fr	800-2200MHz	390-420MHz	1800-2000MHz
Uc	/	/	/
In	20kA	10kA	10kA
Imax	30kA	20kA	20kA
Up	≤20V	≤40V	≤40V
Insertion loss	≤0.2dB	≤0.2dB	≤0.2dB
VSWR	≤1.2	≤1.2	≤1.2
Dimension(mm)	28.5*69	20.2*67.5	20.2*67.5
Connector	N-K/K	TNC-J/K	N-J/K
APP.	GSM.CDMA	SCDMA,PHS	GSM
Re.standard	IEC61643-21; YD/T1542-2006
Environment	Temperature -40~+70°C; Relative hunidity≤95%; Altitude≤3 km
