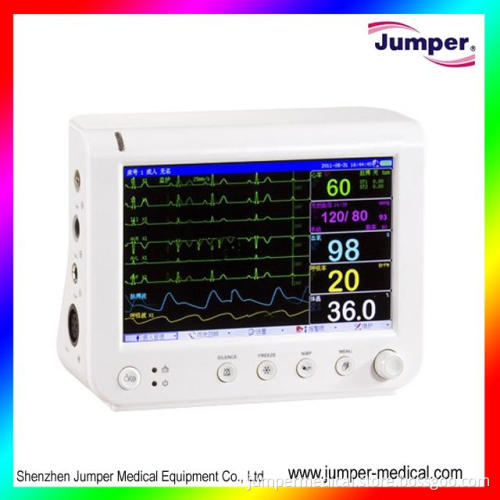

Multi-Parameter Patient Monitor Vital Sign Monitor 7" New Design

Multi-parameter Patient Monitors JPD-800A

Standard configuration:

7 inch(16:9) TFT widescreen;
Resolution: 800*480
ECG , Spo2 , PR , NIBP , RR , Temp

Function:

6 display interface
720 hours trend data storage, 12 hours waveform review
voice alarm

support wired and wireless networking
support software upgrade online

Specification:

ECG
Leads Mode; 5 leads;
Gain(mm/mV): 1/4,1/2,1,2,4
Scanning speed; 12.5mm/s,25mm/s,50mm/s
Frequency response: diagnosis 0.05-130Hz
                    Monitoring 0.5 - 40Hz
                    Operation  1.0- 20Hz
Heart rate range: 15-350 BPM
Heart rate accuracy: ±1%
ST segment analysis: -0.8-+0.8Mv
ST segment accuracy: ±0.02Mv


NIBP
Measure and Alarm Range
Adult Mode
SYS   40 ~ 280 mmHg
DIA   10 ~ 220 mmHg
MEAN  20 ~ 240 mmHg
Pediatric Mode
SYS   40 ~ 220 mmHg
DIA   10 ~ 160 mmHg
MEAN  20 ~ 170 mmHg
Neonatal Mode
SYS   40 ~ 135 mmHg
DIA   10 ~ 100 mmHg
MEAN   20 ~ 110 mmHg
Static pressure range: 0~300 mmHg
Static pressure accuracy: ±3 mmHg or 2%
Resolution: 1 mmHg
Protection mode; dual over voltage protection

SPO2
Measure range: 1-100%
Accuracy: ±2% (70-100%)
Resolution: 1%

Pulse rate
Measure range: 20-300 BPM
Accuracy: ±2 BPM
Resolution: 1 BPM

Temperature
Channel;    2
Measure range: 0-50°C
Accuracy: ±0.1°C
Resolution: 0.1°C

Respiration
Measure range; Adult               0~120BrPM
               Pediatric/ Neonatal    0~150BrPM
Accuracy: ± 2%
Resolution: 1 BPM

Option

Lithium battery (built-in)
