Standard HD 720p 4 Channel Do-It-Yourself PNP NVR Kits

This 4 channel do-it-yourself PNP NVR kit is a state-of-the-art surveillance solution that can be deployed 24 hours a day, 7 days a week in your home or office premises. This security system allows for viewing and recording of footage from up to 4 cameras simultaneously.

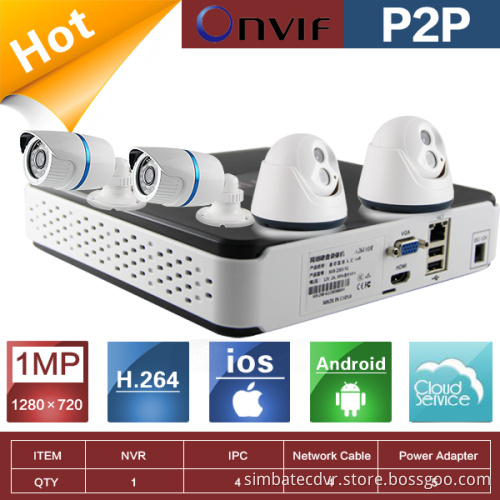

Included in this security system are 4PCS HD 720p infrared day night cameras, each of which records clear and detailed images at a resolution of 1280 X 720. The 4mm 75° -angle lens allows for a wide field of view for monitoring a broader area. The true Day/Night function (with ICR) allows the camera to switch between color and B&W mode automatically as per changes in the ambient lighting. The IR LEDs in the camera provide a night-vision range of up to 20mtrs. The tough and durable IP66-rated housing of bullet camera allows for outdoor installations and the plastic dome camera is suitable for ceiling mounting under indoor environment.

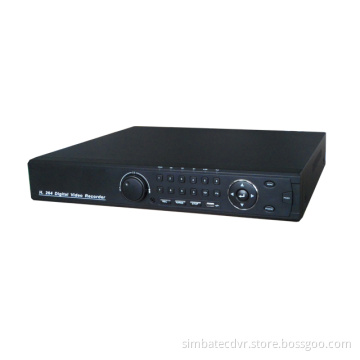

The 4-Channel NVR records 1MP(1280 X 720) images in real-time at a frame rate of 25/30 fps. You can leave the NVR to record continuously, or manually configure it to record when it detects motion. Keeping track of high-risk areas during peak hours is simplified with the NVR's scheduled recording mode, which can be programmed to record at a specific time or date. By changing 4 new 1080P cameras (sold separately), you easily increase the definition of your surveillance system from standard HD 720P to full HD 1080P.

All the recorded videos are compressed in H. 264 format, ensuring optimal usage of the available storage and network resources. Equipped with a 3TB hard drive(HDD not included in the kit packing and sold separately), this DVR provides ample storage space. Using the mobile APP, the recorded videos can be viewed over the Internet on Android/iOS enabled devices or on a Mac or PC via all kinds of browsers. In addition, you can transfer the recorded footage to a USB flash drive for backup or archiving.

Note! Both IP Cameras and NVR are NTSC/PAL switchable. So please declare your right choice when placing an order. Thanks in advance.

NVR Features
Records surveillance videos in standard HD 720P from up to 4 cameras
Cloud service for remote monitoring your premises over the Internet from your PC or Mac
Compatible with iOS and Android smart devices for mobile surveillance and controlling
Maximum storage capacity of up to 4TB HDD provides ample storage space
View full HD videos in real-time on your high-definition LCD or plasma TVs via HDMI or VGA connections
USB port for transferring data to a flash drive
H. 264 compression helps save storage space and ensures optimum utilization of network resources
Remote notification via email
P2P and Onvif support
Audio output port available


IPC Features
1/4" progressive CMOS sensor for clear and crisp footage at 1MP(1280 X 720) resolution
4mm lens with a 75° Wide view angle
Switches from color to B&W mode depending on ambient lighting
Low light monitoring with minimum illumination of 0.01 lux (F1.2) and 0 lux (IR ON)
IR-cut filter and IR LEDs provide a night vision range of up to 20m
Different camera housing for indoor as well as outdoor installation
Backlight Compensation and Gain Control
