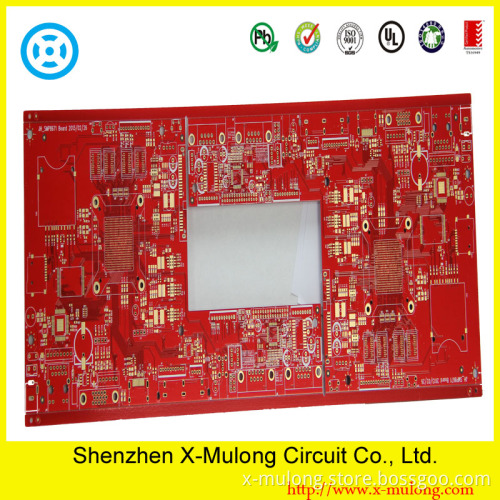

8 Layer Impedance Control Fine Line 5/5mil PCB

8 Layer Impedance Control Fine Line 5/5mil PCB


Layer:                            8
Material:                        FR4 Laminate, RoHS compliance
PCB Thickness:         1.6mm+/-10%
Final Copper:              1oz
Min Hole:                       0.25mm
Min line Width/Space:5/5mil
Soldermask:                 Red
Legend:                         White
Surface:                         Immersion Gold
Outline:                          Rout and Score
E-Test:                          100%

Outgoing Reports:Final Inspection Report, E-Test Report, Solderability Test Report, Microsection Report and so on.

Inspection Standard:IPC-A-600H/IPC-6012B, Class 2/3

Certificates:UL, SGS, RoHS, ISO9001:2008, ISO14001:2004, ISO TS16949:2009


Shenzhen X-Mulong Circuit Co., Ltd is a professional Printed Circuit Board (PCB) manufacturer from China. We are specialized in providing fabrication service for Rigid PCB, Flex PCB, Rigid-Flex PCB and also Aluminum base PCB. Our market positioning is PCB solution provider for prototype, small volume and also medium volume orders. We focus very much on product quality and we have got IS09001-2008, ISO TS16949:2009 certificate for automotive industry on 6th June 2012.

The application fields of our products are various like: consumer electronics, industry, automotive, communication, IT, security, medical products and so on. For detail, we are able to produce PCB for TV, displayer, LED, LCD, washing machine, refrigerator, electronic scale, STB(Set Top Box), meter, industry controller/testing devices, power supply, computer,  modem, inverter, switch, sensor, CCTV, medical devices, automotive electronic accessories and so on.
