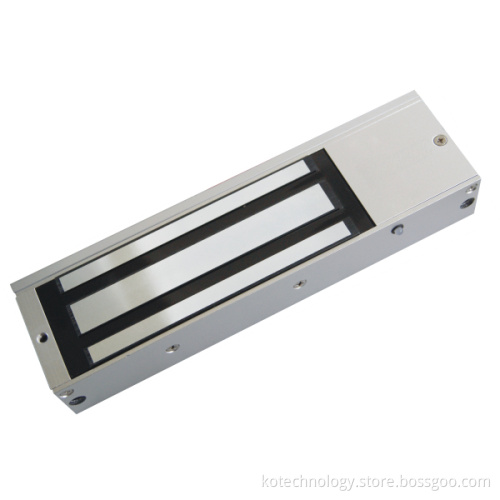

Access Control Lock with High Quality, Ko-500A

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Western Union, Paypal, Money Gram

Product Description

Lock Dimension: 265Lx69Wx39H(mm)
Armature plate Dimenstion: 185Lx61Wx15H(mm)
Holding Force: 500kg(1200Lbs)
Voltage: DC12V or DC24V+10%
Working Current: 12V/420mA 24V/210mA
Signal: Hang mounted with signal output. LED turns green when locked well, LED turns red when unlocking.
Suitable fo: R Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20C
Operating Temp: -10~+55C(14-131F)
Suitable Humidity: 0~95%(non-condensing)
Cover finish: Anodized aluminum
Lock finish: Zinc
Armature Plate finish: Zinc
Weight: 9KG

Collinear Load Test 500kg, 1200pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicates the Door Status
Lock Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed
High Strength Material, Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force, Dual Insulative Housing
CE Certificate by European Union, MA Certificate by China Public Security Office
