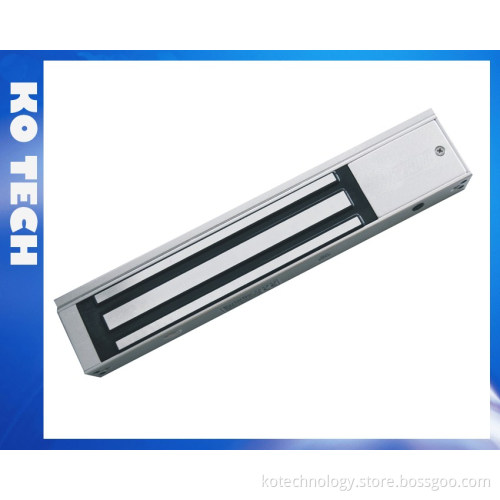

Lock Access Control 280kg 600lbs Magnetic Lock (KO-280A)

Lock Dimension: 250Lx49.5Wx26.5H(mm)
Armature Plate Dimension: 180Lx38Wx11H(mm)
Holding Force: 280kg(600Lbs)
Input Voltage: 12/24VDC+10%
Working Current: 12V/450mA 24V/220mA Signal output: Hang mounted with signal out put. LED turns green when locked well, LED turns red when unlocking.
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20C
Operating Temp: -10~+55C(14-131F)
Humidity: 0~90%(non-condensing)
Cover Finish Anodized: Aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Weight: 1.8KG

Collinear Load Test 280kg, 600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM).
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
