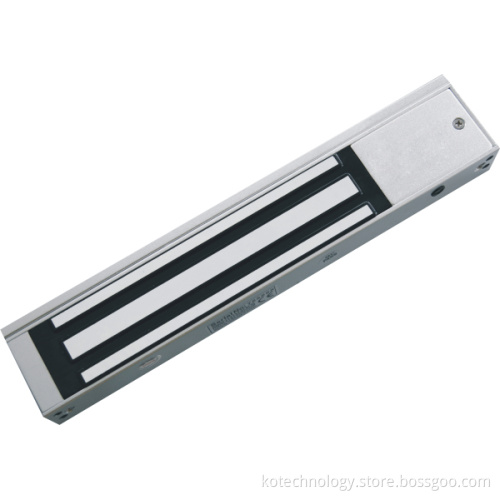

Anti-Residual Magnetism Designed Accsee Control Door Lock 280e

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

Lock Dimension: 250Lx49.5Wx26.5H(mm)
Armature Plate: Dimension 180Lx38Wx11H(mm)
Holding Force: 280kg(600Lbs)
Input Voltage: 12/24VDC+10%
Working Current: 12V/500mA 24V/220mA Signal: Hang mounted with signal output. LED turns green when locked well, LED turns red when unlocking.
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20C
Operating Temp: -10~+55C(14-131F)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Weight: 1.8KG

Collinear Load Test 280kgx2, 600poundsx2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
