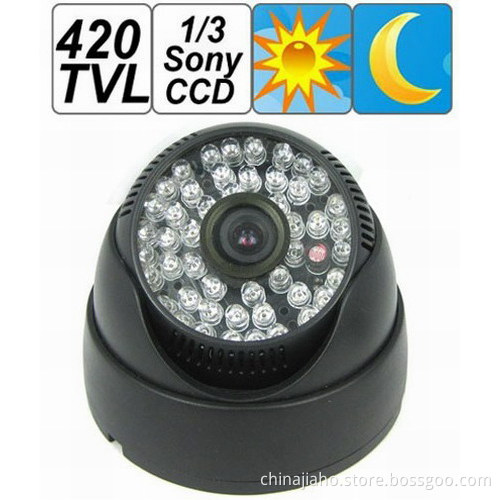

420tvl 1/3 Sony CCD Night Vision Camera + 48 Pieces IR LED (JH_CCTV_090)

Product Specifications:
420TVL 1/3 Sony CCD Night Vision Camera + 48 Pieces IR LED
With 48 pcs IR LED, the viewing distance can achieve to be 40 meters in the night time.
Lens and infrared Led complete isolation. Resolve the fog and astigmatism phenomenon effectively.
Material: Plastic
Image Sensor: 1/3 Sony CCD
The length of the len: 4 mm
Len Type: Static focal length
Horizontal Resolution: 420 TV Lines
Sync Speed: Internal
Effective Pixels:
- PAL: 752 (H) x 582 (V)
- NTSC: 512(H) x 492 (V)
IR LED:
- 48 pcs
- Wavelength: 850nm
- Diameters: Φ 5 mm
Viewing Distance: 40 meters at nighttime (IR)
IR lamps wavelength: 850nm
Scanning mode: 2: 1
Minimum Illumination: 0.000 LUX x F1.2(IR LED ON)
Video Output: 1Vp ~ p. 75 Ω
Shutter Speed: 1/50 ~ 1/100, 000 second
White Balance: Auto White Balance
Backlight Compensation: ON
S/N Ratio: > 48db (AGC OFF)
CDS Sensor: YES
Audio: No
Operation Humidity: RH95%
Operating Temperature: -10 ~ 50 Degrees Celsius
Connection Type: BNC
Power Requirement: DC 12V, 1000mA
Dimensions:
- Diameter: 80 mm
- Length: 90 mm
Accessories:
1 x BNC
1 x Screws
1 x Power Adapter
